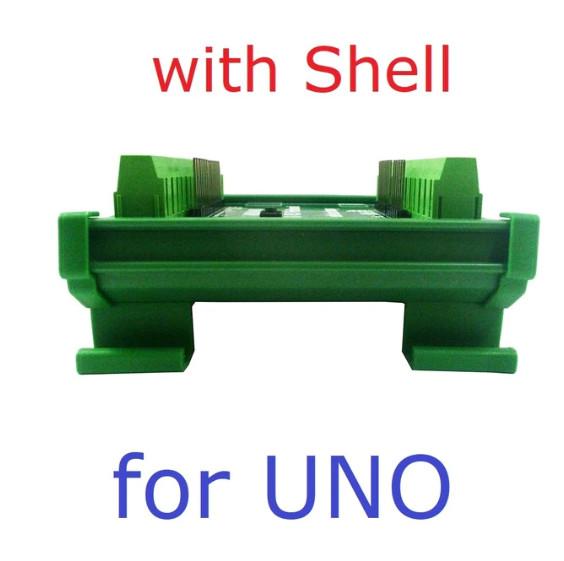

DIN Rail Mount Screw Terminal Block Adapter For Arduino NANO/UNO/MEGA - For UNO

llustrate:

Terminal spacing: 3.96mm.
Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.

For Arduino UNO :
Size:110*85 *41mm(with Rail Box)
Weight:145g(with Rail Box)

For Arduino MEGA2560:
Size:165*85 *25mm(with Rail Box)
Weight:192g(with Rail Box)

For Arduino NANO:
Size:85*54 *25mm(with Rail Box)
Weight:77g(with Rail Box)

For Arduino Pro Mini:
Size: 68*48 *28mm(with Rail Box)
Weight: 44g(with Rail Box)

Use:
DIN Rail Mount Screw Terminal Adapter Module for Arduino UNO /MEGA2560/NANO/Pro mini Development Board.
With this adapter modules, you can easily extend your UN0/MEGA2560/NANO/Pro mini projects to industrial control applications.

Notice:
This product does not include the UN0/MEGA2560/NANO/Pro mini Board

DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(42mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 54 mm PCB boards
Net weight: 21g
Installation: DIN35 and C45 rail
