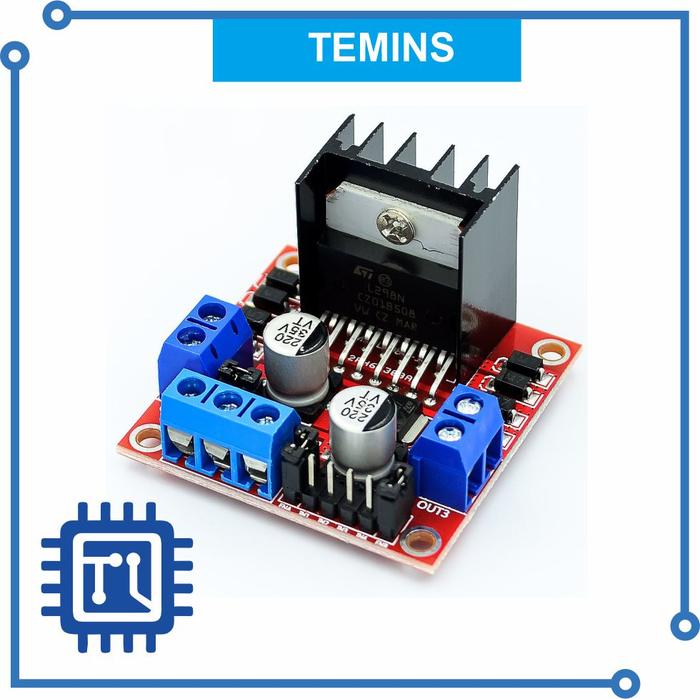

L298N Motor Driver Controller
Rp15.500
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Motor dan Driver
Modul Driver L298N merupakan driver motor berdaya tinggi untuk menggerakkan Motor DC dan Stepper. Modul ini terdiri dari IC L298 dan regulator 78M05 5V. Modul L298N dapat mengontrol hingga 4 motor DC, atau 2 motor DC dengan kontrol arah dan kecepatan (Dual H-Bridge).
Spesifikasi:
- Tipe: Dual H-Bridge
- Chip kontrol: ST L298N
- Logic voltage: 5V DC
- Drive voltage: 5-35V DC
- Logical current: 0mA-36mA
- Driving current: 2A (MAX single bridge)
- Temperatur: -20 C - 135 C
- Power maksimum: 25W
- Berat: 30g
- Ukuran: 43 x 43 x 27mm
Pinout:
•IN1 & IN2 -> Motor A input pins. Used to control the spinning direction of Motor A
•IN3 & IN4 -> Motor B input pins. Used to control the spinning direction of Motor B
•ENA -> Enables PWM signal for Motor A
•ENB -> Enables PWM signal for Motor B
•OUT1 & OUT2 -> Output pins of Motor A
•OUT3 & OUT4 -> Output pins of Motor B
•12V -> 12V input from DC power source
•5V -> Supplies power for the switching logic circuitry inside L298N IC
•GND -> Ground pin
Spesifikasi:
- Tipe: Dual H-Bridge
- Chip kontrol: ST L298N
- Logic voltage: 5V DC
- Drive voltage: 5-35V DC
- Logical current: 0mA-36mA
- Driving current: 2A (MAX single bridge)
- Temperatur: -20 C - 135 C
- Power maksimum: 25W
- Berat: 30g
- Ukuran: 43 x 43 x 27mm
Pinout:
•IN1 & IN2 -> Motor A input pins. Used to control the spinning direction of Motor A
•IN3 & IN4 -> Motor B input pins. Used to control the spinning direction of Motor B
•ENA -> Enables PWM signal for Motor A
•ENB -> Enables PWM signal for Motor B
•OUT1 & OUT2 -> Output pins of Motor A
•OUT3 & OUT4 -> Output pins of Motor B
•12V -> 12V input from DC power source
•5V -> Supplies power for the switching logic circuitry inside L298N IC
•GND -> Ground pin
