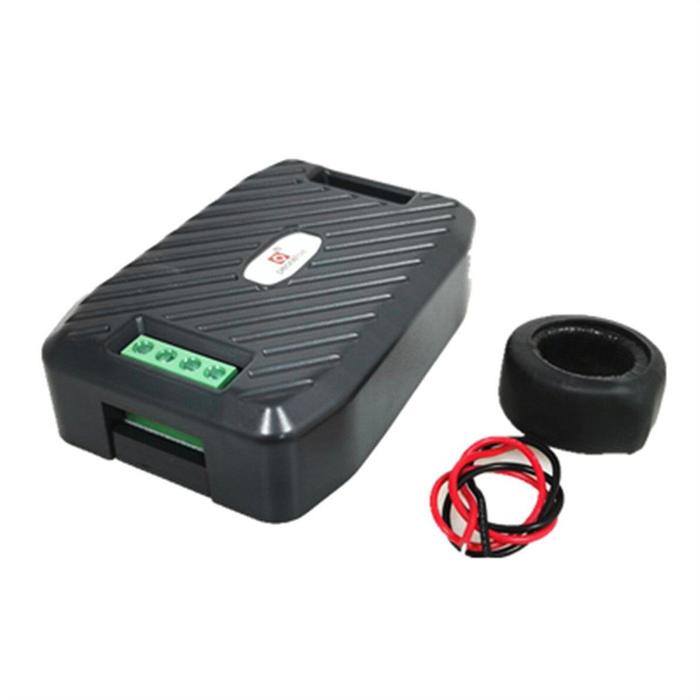

PZEM-016 AC Sensor Arus, Tegangan, Frekuensi, Watt, Cosphi RS485 - CT Tertutup
Rp137.000
Pilih tipe ct: CT Tertutup
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Sensor
PZEM merupakan sensor listrik yang sangat lengkap, dengan 1 modul ini kita sudah bisa mengukur arus, tegangan, frekuensi, daya, bahkan cosphi.
PZEM-016 merupakan tipe dengan interface komunikasi RS485.
Ada 2 varian di link produk ini, tipe CT bisa dibuka dan tertutup. (silahkan pilih).
This document describes the specification of the PZEM-016 AC communication module, the module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy, the module is without display function, the data is read through the RS485 interface.
We provide the software to connect it with the PC, all Win system can be used. If you want to connect it with other terminal device such as PLC,SCM and so on, please prepare the fitable cable and write the program by yourself.
The PZEM-016 must use with the CT, it can match with coil CT.
Manufacturer AC Single Phase 0-100A Electric Kwh Meter Ammeter (PZEM-016)
Product Type :
PZEM-016 AC Single Phase electric Module without display with RS485 communication serial
Function :
This document describes the specification of the PZEM-014/016 AC communication module, the module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy, the module is without display function, the data is read through the RS485 interface.
Test Parameters Range :
1. Voltage: 80~260V
2. Current: 0~100A
3. Power: 0~23000W
4. Power factor: 0.00~1.00
5. Frequency: 45Hz~65Hz
4. Energy: 0~9999kWh
Accuracy : 0.5grade
Current resolution : 0.001A
Power resolution :0.1W
Product Size : 90*60.5*23mm
Unit Weight : 112g(with coil CT)
Precautions :
1. This module is suitable for indoor, please do not use outdoor.
2. Applied load should not exceed the rated power.
3. Wiring order can't be wrong.
PZEM-016 merupakan tipe dengan interface komunikasi RS485.
Ada 2 varian di link produk ini, tipe CT bisa dibuka dan tertutup. (silahkan pilih).
This document describes the specification of the PZEM-016 AC communication module, the module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy, the module is without display function, the data is read through the RS485 interface.
We provide the software to connect it with the PC, all Win system can be used. If you want to connect it with other terminal device such as PLC,SCM and so on, please prepare the fitable cable and write the program by yourself.
The PZEM-016 must use with the CT, it can match with coil CT.
Manufacturer AC Single Phase 0-100A Electric Kwh Meter Ammeter (PZEM-016)
Product Type :
PZEM-016 AC Single Phase electric Module without display with RS485 communication serial
Function :
This document describes the specification of the PZEM-014/016 AC communication module, the module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy, the module is without display function, the data is read through the RS485 interface.
Test Parameters Range :
1. Voltage: 80~260V
2. Current: 0~100A
3. Power: 0~23000W
4. Power factor: 0.00~1.00
5. Frequency: 45Hz~65Hz
4. Energy: 0~9999kWh
Accuracy : 0.5grade
Current resolution : 0.001A
Power resolution :0.1W
Product Size : 90*60.5*23mm
Unit Weight : 112g(with coil CT)
Precautions :
1. This module is suitable for indoor, please do not use outdoor.
2. Applied load should not exceed the rated power.
3. Wiring order can't be wrong.
