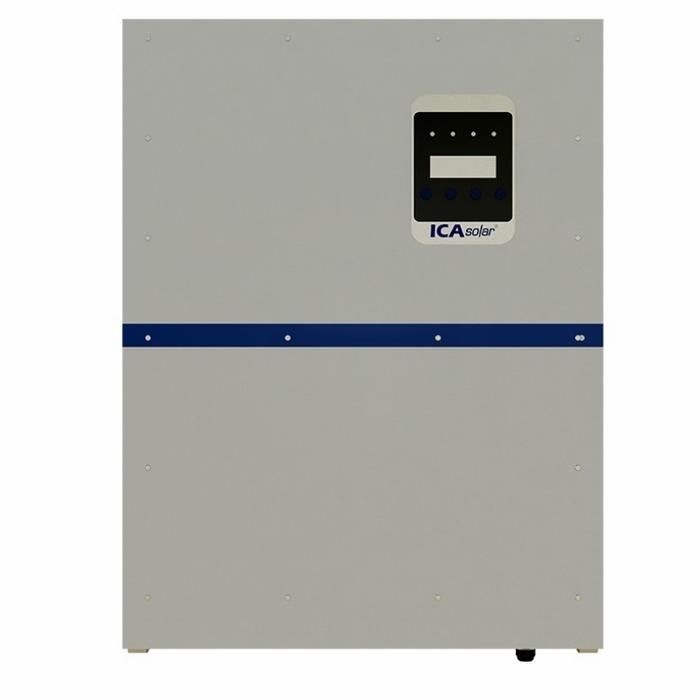

ISolar GT5002TM Ongrid PSW 50.000W Inverter GTI 50KW 3Phase

Penggunaan inverter On-Grid untuk mengubah arus DC dari panel surya menjadi arus AC. Inverter ini terangkai dalam sistem On-Grid dimana area tersebut harus terhubung dengan jaringan PLN yang ada, dan tanpa menggunaan baterai/aki. Features Highlights: Transformerless Maximum efficiency gt;98.2% Triple MPPT MPPT Efficiency gt;99.9% RS232/RS485/WiFi interfaces TECHNICAL SPECIFICATIONS: INPUT (DC) Max. DC input power: 55 kW Max. DC input voltage: 1000Vdc MPPT tracking voltage range: 250~950Vdc (rated voltage 620Vdc) Number of MPPT tracking: 3 String of MPPT tracking: 4 Max. input current for each tracking: 36A/36A/36A OUTPUT Rated output power: 50 kW Max. AC output power: 52 kW Rated output voltage: 400Vac Output voltage range: 400Vac±20% AC output topology: 3Ph+N+PE, Transformerless Grid frequency range: 50/60Hz (±5Hz), (adjustable) Rated output current: 72A Max. output current: 75A Power factor (cos Φ): 0.8 leading - 0.8 lagging THDI: lt;2% SYSTEM FEATURES Max efficiency: gt;98.6% MPPT efficiency: gt;99.9% Standby (night time) losses: lt;2 W Cooling: Forced air cooling DC switch: Optional Communication interface: RS485 standard, external WiFi or Ethernet (optional) ENVIRONMENTAL Operating temperature: -25°C~+60°C Humidity range: 0~95% (non-condensing) Altitude: 2000m Noise level: lt;60dB Protecting rating: IP65 PHYSICAL Dimension (W*L*D) in mm: 636 x 958 x 260 Shipping weight: 68kg Communication interface: RS485 standard, external WiFi or Ethernet (optional) STANDART Safety: IEC/EN62109-1,IEC/EN62109-2,VDE0126-1-1, VDE AR N4105, G83/59/EEG2012, AS3100/4777,CEI 0-21,etc. EMC: EN61000-6-2, EN61000-6-3, EN61000-3-11, EN61000-3-12, etc. *Specifications subject to change without prior notice
