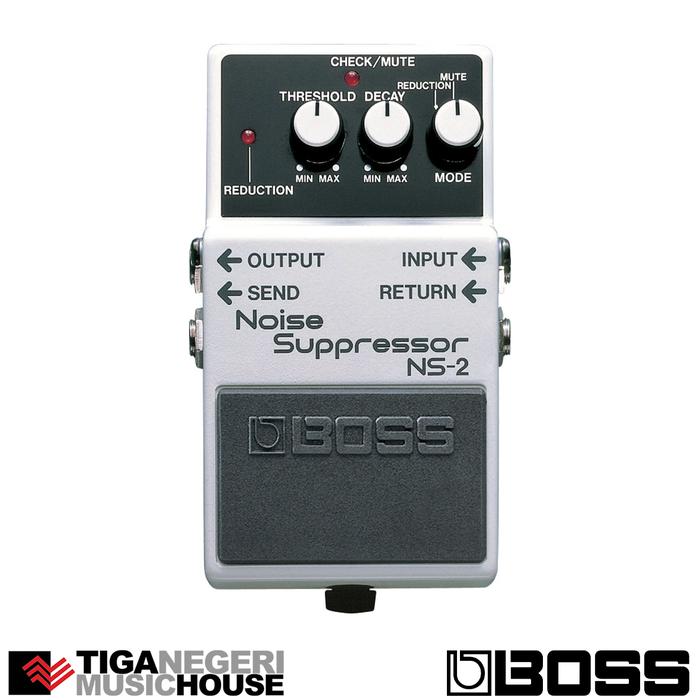

The NS-2 Noise Suppressor eliminates unwanted noise and hum without altering an instrument's natural tone. It's the perfect pedal to quiet down any pedalboard or effects setup.
Specs :
Nominal Input Level -20 dBu Input Impedance 1 M ohm Nominal Output Level -20 dBu Output Impedance 1 k ohm Recommended Load Impedance 10 k ohms or greater Bypass Buffered bypass Controls MODE selector switch DECAY knob THRESHOLD knob Pedal switch Indicator CHECK/MUTE indicator (Used for indication of check battery) REDUCTION indicator Connectors INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type SEND jack: 1/4-inch phone type RETURN jack: 1/4-inch phone type DC IN jack 9V DC OUT jack Power Supply Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately) Current Draw 25 mA Expected battery life under continuous use Carbon: Approx. 11 hours Alkaline: Approx. 24.5 hours *These figures will vary depending on the actual conditions of use. Accessories Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22) Options (sold separately) AC adaptor: PSA series Parallel DC Cord: PCS-20A
