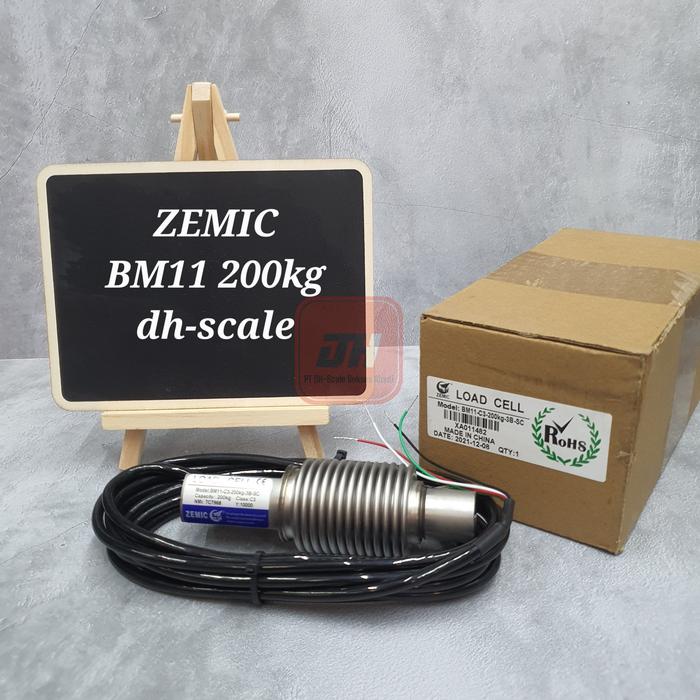

Load cell sensor timbangan ZEMIC BM11 kap 50Kg - 500Kg - 200kg
Rp3.200.000
Pilih ukuran: 200kg
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: LOADCELL ZEMIC
ZEMIC LOAD CELL BENDING BEAM TYPE BM11
MERK : ZEMIC
TYPE : BENDING BEAM BM11
WARRANTY : 1 YEAR
MADE IN : CHINA
FEATURES :
- Stainless steel IP68 bending beam point load cell
- Hermetically closed
- Suitable for pallet, platform and small hopper scales
- High accuracy
SPECIFICATIONS :
Accuracy class : OIML R60 C3
Output sensitivity (=FS) : .0 0.2mV/V
Maximum capacity (Emax) : 10, 20, 30, 50, 100, 200, 300, 500Kg
Maximum number of load cell intervals (Nlc) : 3000
Ratio of minimum LC verification interval Y = Emax / Vmin : 10000 15000, 6000
Combined error : 0.020%FS
Minimum dead load : 0kg
Safe overload : 150%of Emax
Ultimate overload : 300%of Emax
Zero balance : < 1.0%of FS
Excitation, recommended voltage : 5 ~ 12V
Excitation maximum : 18V
Terminal resistance, input : 430 50
Terminal resistance, output : 351 2
Insulation impedance : 5000 M (at 50V DC)
Temperature range, compensated : -10 ~ 40C
Temperature range, operating : -35 ~ +65C
Element material : Stainless steel
Ingress protection (according to EN 60529) : IP68
MERK : ZEMIC
TYPE : BENDING BEAM BM11
WARRANTY : 1 YEAR
MADE IN : CHINA
FEATURES :
- Stainless steel IP68 bending beam point load cell
- Hermetically closed
- Suitable for pallet, platform and small hopper scales
- High accuracy
SPECIFICATIONS :
Accuracy class : OIML R60 C3
Output sensitivity (=FS) : .0 0.2mV/V
Maximum capacity (Emax) : 10, 20, 30, 50, 100, 200, 300, 500Kg
Maximum number of load cell intervals (Nlc) : 3000
Ratio of minimum LC verification interval Y = Emax / Vmin : 10000 15000, 6000
Combined error : 0.020%FS
Minimum dead load : 0kg
Safe overload : 150%of Emax
Ultimate overload : 300%of Emax
Zero balance : < 1.0%of FS
Excitation, recommended voltage : 5 ~ 12V
Excitation maximum : 18V
Terminal resistance, input : 430 50
Terminal resistance, output : 351 2
Insulation impedance : 5000 M (at 50V DC)
Temperature range, compensated : -10 ~ 40C
Temperature range, operating : -35 ~ +65C
Element material : Stainless steel
Ingress protection (according to EN 60529) : IP68
