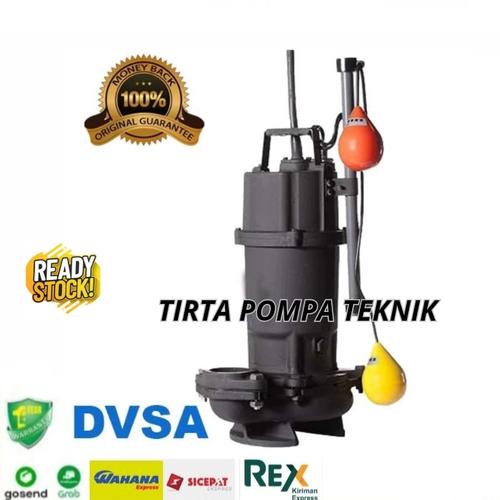

Pompa Celup EBARA 65DVSA51.5 Submersible Pump Ebara 2Hp 3Phase Auto

DVSA ( Submersible Sewage Pump with Semi-Vortex Impeller)

Applications
* Ideal for waste water applications containing for or fibrous solids
* Industrial waste water drainage
* Septic effluent
* Miscellaneous drainage

Materials
* Pumpingbody, semi-vortex impeller, elbow in cast iron
* Shaft in AISI 403
* Mechanical seal : SiC/SiC/NBR (pump side), Carbon/Ceramic/NBR (motor side)

Technical Data
* 2 pole motor
* Insulation : Class F
* Protection degree : IP68

Specification
* Maximum liquid temperature : 40C
* Maximum passage of solids : 21mm (50DVS), 33 mm (65DVS, 80DVS 1.5 kW), 41 mm (65DVS, 80DVS 2.2-3.7 kW)

Cocok digunakan untuk :
~ Pengolahan limbah
~ Perkantoran
~ Apartemen dan Rumah Sakit
~ Kolam tambak ikan
~ Kolam renang
~ Jeram buatan
~ Dinas, instansi dan pusat riset perikanan.
~ Industri

SPESIFIKASI :
-Merk : EBARA
-Type : 65DVSA51.5
-Power : 1,5Kw 2Hp 3Ph 380V 2Pole 50Hz
-Head Max : 13 Mtr
-Kap Max : 300 Ltr/Mnt
-Pipa Out : 2,5 inch (65mm)
-Autometic : YA (2 Bola Pelampung)
