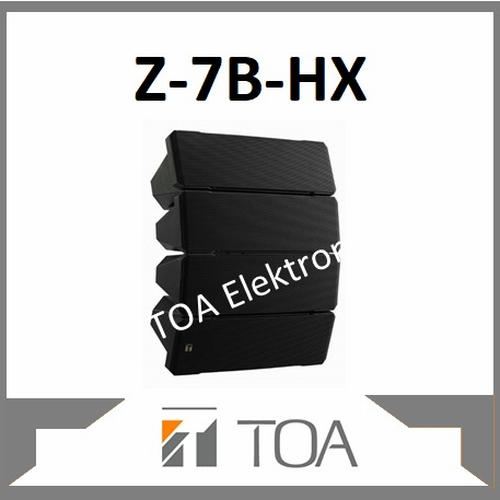

Speaker Line Array TOA Z-7B-HX - Black (250 Watt)

The Z-7B-HX-AS is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in vertical directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise. Z-7B-HX-AS is designed for indoor use.
Enclosure Bass-reflex type
Power Handling Capacity Continuous pink noise: 250 W (IEC60268-5: 350 W)
Continuous program: 750 W
Rated Impedance 8 Ω
Sensitivity 100 dB (1 W, 1 m)
Frequency Response 75 Hz - 20 kHz
Crossover Frequency 1.7 kHz
Directivity Angle Horizontal: 100゜
Vertical: Depending on directivity angle mode
Speaker Component Low frequency: 13 cm (5.5") cone-type × 8
High frequency: Wave front control horn with compression driver × 4
Input Terminal Speakon NL4MP × 2 and M4 screw terminal, distance between barriers: 9 mm (0.35")
Finish Enclosure: Polypropylene, black
Punched net: Surface-treated steel plate, black, paint
Hanging bracket: Steel plate, t3.0, black, paint
Dimensions 497 (W) × 664 (H) × 274 (D) mm (19.57" × 26.14" × 10.79")
Weight 30 kg (66.14 lb)
Accessory Hanging bracket L, R (L and R are symmetrical to each other.) …1 each,
Hanging bracket mounting bolt …4
Option Matching transformer: ZT-200 (*1)
Matching transformer adapter: ZY-MT7-AS
Speaker mounting bracket: ZY-60DB-AS, ZY-CN7B-AS, ZY-PF7B-AS*when mounting the ZT-200 Matching transformer to the speaker, an optional ZY-MT7-AS Matching Transformer adapter is required.
