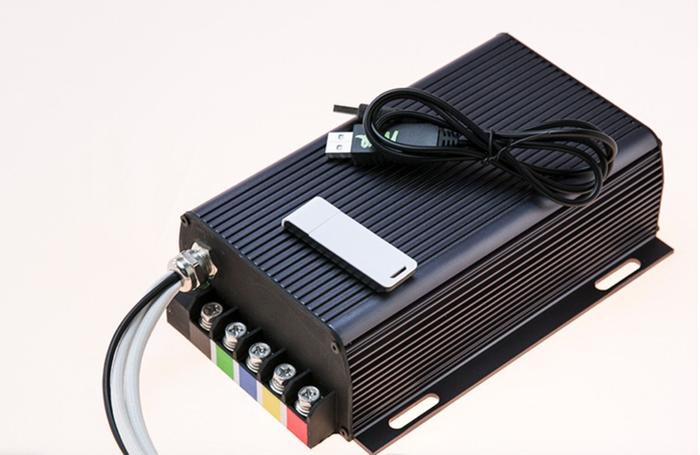

Sabvoton controller SVMC48060 for 1000w Electric Bicycle Motor

60A Brushless DC Motor Driver SVMC48060 for 1000w Electric Bicycle Motor Sabvoton controller only design sine wave type controller so far, it’s brushless DC controller, 120 degree phase angle. Generally, we matched it well with QS Motor, if you want to match with new brand motor, some parameters should be tested by yourself. Key Features 1). Cheap Cost 2). Can match with almost brushless DC motor 3). Programmable 4). Sine wave without noise Product Description 1. Generally SPEC 1). sine wave controller, programmable, with regen function 2). DC Current Limit: 60A 3). Max. Phase Current: 150A 4). Protect Phase Current: / 5). Battery Voltage: 24V-48V rated, Max. 70V 6). Thermic Probe: KTY83-122 7). Including one controller + USB convertor cable + matched plug 8). controller size: 215mm*146mm*62mm 9). Net weight: 2kg 10). Default not including bluetooth adapter. 11). Default function: Hall, Throttle, Electric Lock, High Brake Level, Temp sensor, 0-5v e-brake, three speed Button, Hall speedometer, Reverse, curise. 12). Special functions: Waterproof, Anti-theft Tinggalkan pesan untuk Type sabvoton.
