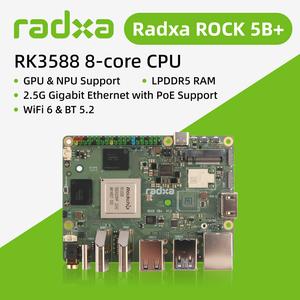

Radxa ROCK 5B+ RK3588 8-core CPU, GPU & NPU support, 8K HDMI, LPDDR5 RAM and WiFi 6 single board computer
Rp6.589.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Radxa ROCK 5B+ RK3588 8-core CPU, GPU & NPU support, 8K HDMI, LPDDR5 RAM and WiFi 6 single board computer
Product name
Radxa ROCK 5B+
SoC
RK3588
CPU
Quad ARM Cortex‑A76 and Quad ARM Cortex‑A55
GPU
ARM Mali G610MP4 GPU
- OpenGL ES1.1, ES2.0, and ES3.2
- OpenCL 1.1, 1.2 and 2.2
- Vulkan 1.1 and 1.2
- Embedded high performance 2D image acceleration module
NPU
NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration computing power is up to 6TOPs
Multimedia
H.265 / VP9 / AVS2 multivideo decoder up to 8K@60fps
H.264 multivideo decoder up to 8K@30fps
H.265 / H.264 multivideo encoder up to 8K@30fps
ISP
48M Pixel ISP with HDR&3DNR
RAM
LPDDR5
Storage
onboard eMMC
microSD Card Slot
SPI Flash
YES
Audio
Headphone Jack with Microphone Input
Video Output
1x Standard HDMI 2.1 supporting up to 8Kp60
1x Standard HDMI 2.1 supporting up to 4Kp60
1x DP via USB Type C port
1x MIPI DSI supporting up to 1080p60
Able to provide 4 display outputs at the same time
Video Input
1x Standard HDMI Input supporting up to 4Kp60
2x 4-lane or 4x 2-lane MIPI CSI for camera
USB
1x USB Type-C port
- DP display up to 4Kp60
- USB 3.1 Gen1
1x USB 3.1 Gen1 Type A HOST port
1x USB 3.1 Gen1 Type A HOST port
2x USB 2.0 Type A HOST port
Ethernet
2.5G Gigabit Ethernet port with PoE support
Additional PoE HAT Required
Wireless
WiFi 6 & BT 5.2
Antenna
External Antenna Connector
M.2 M Key Connector
2x M.2 M Key Connector with PCIe 3.0 2-lane
M.2 B Key Connector
Yes
SIM Card Slot
Yes
Fan Header
Yes
RTC Header
Yes
Button
1x Power Button
1x Recovery Button
1x Maskrom Button
40-Pin GPIO Header
Yes
Form Factor
100 mm x 75 mm
