IC 2262 / 2272 Module: 315MHZ 4 Channel Wireless RF Remote Control

MENGAPA BERBELANJA DI TOKO KAMI
1. Quick Respond.. OK
2. Quick Delivered.. OK
3. Packed Safely.. OK
==JANGAN TERTIPU PRODUK MURAH, NAMUN PRODUK/PELAYANAN MENGECEWAKAN. TOKO BEY SELALU MENJAGA KUALITAS PRODUK/LAYANAN==

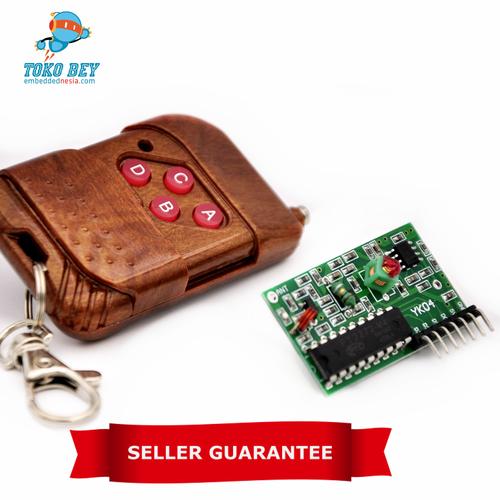

NOTE: dijual satu paket ( transmiter dan receiver)

RF Remote Control module bekerja di frekuensi 315MHz, dengan remote 4 tombol, dengan 4 kanal untuk mengendalikan 4 device

Spesifikasi Receiver:
Power: 5V
Decoder Chip: PT2272
Quiescent Current: 4.5 mA
Modulation: AM (OOK)
Operating Temperature: -10 C to +70 C
Receiver sensitivity (dBm):-105 DB
Operating range: up to 100m
Channels: 4
Encoding: Encoding pad (fixed code)
Pin Assignment:
D0: - D3: Output ,
GND: Ground,
VT is a valid signal high output pin upon receiving a valid signal, the pin output high, may also drive the relay
Size: 6.6 x 22 x 41mm
Weight: 80g
Solder kabel sepanjang 20cm ke pin ANT untuk menambah sensitivitas receiver!

Spesifikasi Remote Control:
Operating voltage: DC 12V (27A / 12V battery x 1)
Encoder Chip: PT2262
Operating current: 10mA at 12V
Radiated power: 10mW at 12V
Transmission distance: 50m - 100m (open field, the receiver sensitivity of -100dbm)
Transmitting frequency: 315MHZ
Modulation mode: ASK (Amplitude Modulation)
