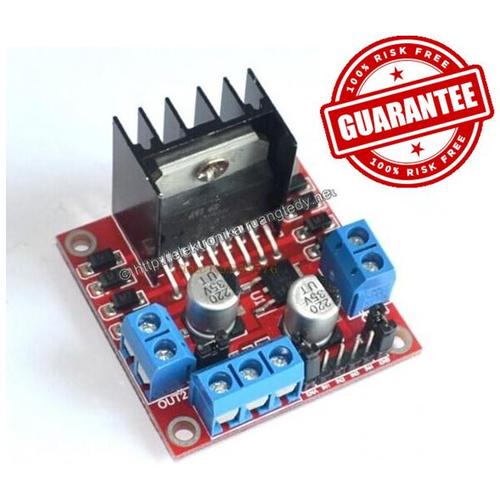

L298N Dual H Bridge DC Motor Driver Controller Module





Toko sedang libur
Tenang, kamu bisa kembali belanja di toko ini mulai Selasa, 1 Jun 2021.
L298N Dual H Bridge DC Motor Driver Controller Module
Terjual 25
rating 4.8 (8 ulasan)
Diskusi (12)
Rp37.000
Detail
- Kondisi: Baru
- Berat: 100 Gram
- Kategori: Lainnya
- Etalase: Motor dan Driver
AVAILABLE STOCK: 5 unit
JANGAN TERTIPU HARGA SEKEDAR MURAH NAMUN KUALITAS PELAYANAN MINUS
MENGAPA BERBELANJA DI TOKO KAMI
1. Quick Respond.. OK
2. Quick Delivered.. OK
3. Packed Safely.. OK
4. Seller Guarantee.. OK
SPESIFIKASI
Driver: L298N Dual H Bridge DC Motor Driver IC
The terminal supply area of driven part Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: 7V ~ 35V
The peak current of driven part Io: 2A
the terminal supply of area the logical part Vss: +5 V ~ +7 V (can take power within the board +5 V)
the operating current range of the logical part : 0 ~ 36mA
control signal input voltage range:
Low:-0.3V Vin 1.5V
High: 2.3V Vin Vss
enable signal input voltage range:
Low: -0.3 Vin 1.5V (control signal is invalid)
High: 2.3V Vin Vss (control signal active)
Maximum power consumption: 20W (when the temperature T = 75 C)
Storage temperature: -25 C ~ +130 C
Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height)
Driver Board Weight: 33g
Other Extensions: control of direction indicators, the logic part of the plate to take power interface.
LIBRARY (ARDUINO) :
https://github.com/artofcircuits/ArtofCircuits_L298n_Library
GARANSI:
Kami menjamin barang yang kami kirim berfungsi dengan baik dalam bentuk garansi 1 x 24 jam efektif berlaku semenjak sistem Tokopedia menyatakan bahwa barang telah diterima pembeli. Silahkan baca kebijakan pengembalian produk mengenai peraturan garansi dari kami
== mengapa mengambil resiko belanja di tempat lain jika TOKO BEY berani memberikan garansi terhadap produknya ==
JANGAN TERTIPU HARGA SEKEDAR MURAH NAMUN KUALITAS PELAYANAN MINUS
MENGAPA BERBELANJA DI TOKO KAMI
1. Quick Respond.. OK
2. Quick Delivered.. OK
3. Packed Safely.. OK
4. Seller Guarantee.. OK
SPESIFIKASI
Driver: L298N Dual H Bridge DC Motor Driver IC
The terminal supply area of driven part Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: 7V ~ 35V
The peak current of driven part Io: 2A
the terminal supply of area the logical part Vss: +5 V ~ +7 V (can take power within the board +5 V)
the operating current range of the logical part : 0 ~ 36mA
control signal input voltage range:
Low:-0.3V Vin 1.5V
High: 2.3V Vin Vss
enable signal input voltage range:
Low: -0.3 Vin 1.5V (control signal is invalid)
High: 2.3V Vin Vss (control signal active)
Maximum power consumption: 20W (when the temperature T = 75 C)
Storage temperature: -25 C ~ +130 C
Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height)
Driver Board Weight: 33g
Other Extensions: control of direction indicators, the logic part of the plate to take power interface.
LIBRARY (ARDUINO) :
https://github.com/artofcircuits/ArtofCircuits_L298n_Library
GARANSI:
Kami menjamin barang yang kami kirim berfungsi dengan baik dalam bentuk garansi 1 x 24 jam efektif berlaku semenjak sistem Tokopedia menyatakan bahwa barang telah diterima pembeli. Silahkan baca kebijakan pengembalian produk mengenai peraturan garansi dari kami
== mengapa mengambil resiko belanja di tempat lain jika TOKO BEY berani memberikan garansi terhadap produknya ==
