Deskripsi STM32F103C8T6 ARM STM32 Minimum System Development Board Module

Jangan tertipu harga murah namun pelayanan minus...

MENGAPA BERBELANJA DI TOKO KAMI?
1. Quick Respond.. OK
2. Quick Delivered.. OK
3. Packed Safely.. OK
4. Tutorial Available.. OK

DESKRIPSI
Minimum System STM32F103C8T6 adalah cara paling praktis dan murah untuk belajar pemrograman STM32, dibandingkan evaluation board lainnya (seperti nucleo, Discovery dll).

Meskipun harganya murah, minimun System ini bisa diprogram dengan berbagai IDE layaknya evaluation board pada umumnya, bisa menggunakan Keil uVision, CooCox CoIDE, MikroC hingga Arduino IDE (dengan plugin tambahan STMDUINO).

Minimum System ini belum termasuk downloader program, sehingga Untuk mendowload program ke board ini diperlukan downloader ST-LINK V2, https://www.tokopedia.com/toko-bey/stlink-st-link-v2-mini-stm8-stm32-programmerdownloaderdebugger-1

FITUR
* On-board Mini USB interface, you can give the board power supply and USB communication.
* On-board test indicator LED
* On-board reset button and power indicator LED
* On-board 100ma 3.3V Regulator
* All GPIO are led out and the names of the pins are marked
* After soldering the headers, you can directly plug the board onto the breadboard


SPESIFIKASI
* CPU Part Number: STM32F103C8T6
* Core: ARM 32 Cortex-M3 CPU.
* Debug mode: SWD (can be programmed with ST-LINK V2)
* CPU Internal Maximum Clock : 72MHz
* External Clock Source: 8MHz crystal
* 64K flash memory, 20K SRAM
* 2.0-3.6V power, I/O
* Reset(POR/PDR)
* Size:5.3cm x 2.2cm

YANG ANDA DAPATKAN

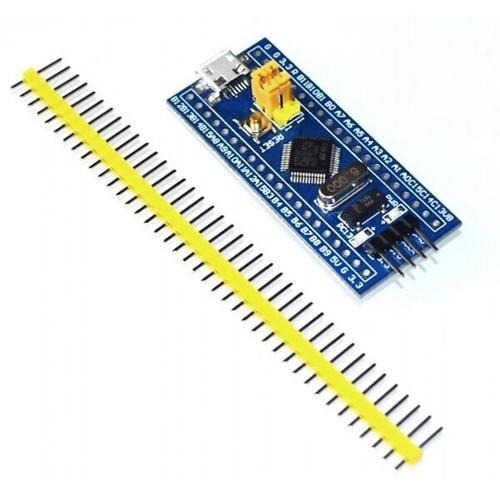

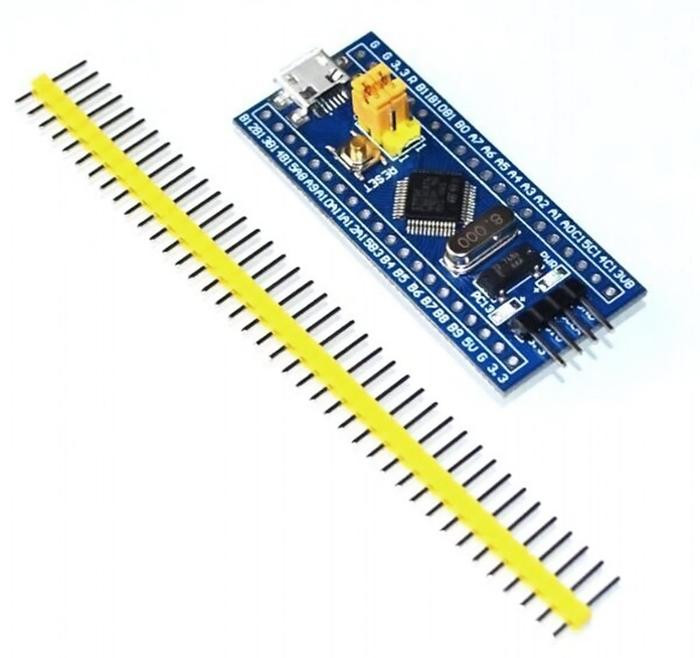

1. STM32F103C8T6 Board 1pcs
2. male header 1pcs

SKEMATIK RANGKAIAN
https://drive.google.com/file/d/0B0NwO01pg4imTGFNNS1kS3JaUEE/view?usp=sharing

TUTORIAL (TESTED - BERBAHASA INDONESIA)
http://embeddednesia.com/v1/?cat=19
