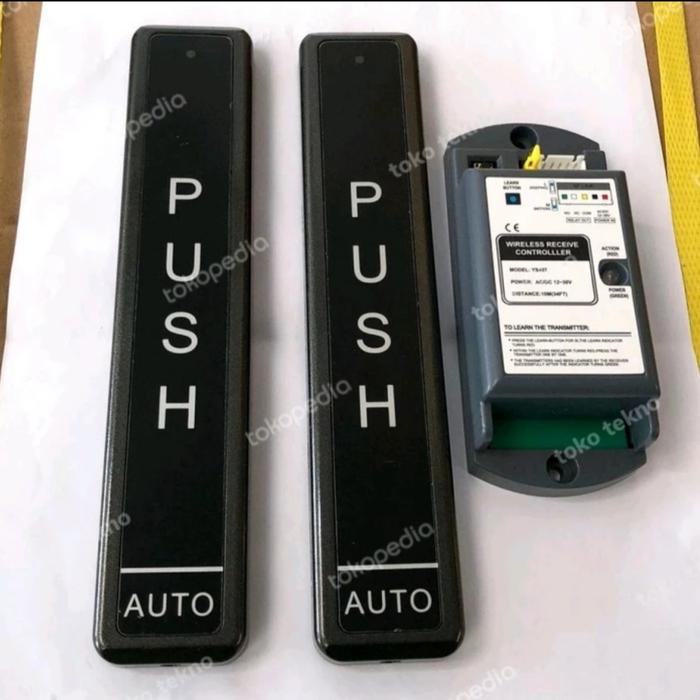

Switch Automatic Door Opening | Wireless Push Button Sliding Door - PUSH
Rp645.000
Pilih warna: PUSH
tombol exit wireless sliding door
Adopt uniformity frequency, stability wireless signal receiving and sending
Self learning code
Frequency : 315 Mhz
Switch power supply : 6V
Receiver power supply : AC/DC 12-36 V
Maintain open time : 1-9 s adjustable
Push switch size : 203 mm x 41 mm x 12.5 mm
Receiver size : 123 mm x 50 mm x 32 mm
Keep contact time : 2s
Technical Parameter
Item Name: Automatic Door Push Button Switches
Wireless Receiver
Power supply:
Static Current: 15mA
Action Current: 80mA (DC 12V Power)
Relay contact capacity: 20A 14VDC
Wireless Transmitter
Power supply: 6V(2/pcs 3V battery)
Emission Current: 3.9mA
Life of Battery: more than 20000 times
Transmit distance: more than 25M
Operation Temperature: -42℃~45℃
Operation Humidity: 10~90%RH
Dimension: 203mm(L)×41mm（W）×12.5mm(H) (Transmitter)
123mm(L)×50mm (W) ×32mm(H) (Wireless receiver)
Adopt uniformity frequency, stability wireless signal receiving and sending
Self learning code
Frequency : 315 Mhz
Switch power supply : 6V
Receiver power supply : AC/DC 12-36 V
Maintain open time : 1-9 s adjustable
Push switch size : 203 mm x 41 mm x 12.5 mm
Receiver size : 123 mm x 50 mm x 32 mm
Keep contact time : 2s
Technical Parameter
Item Name: Automatic Door Push Button Switches
Wireless Receiver
Power supply:
Static Current: 15mA
Action Current: 80mA (DC 12V Power)
Relay contact capacity: 20A 14VDC
Wireless Transmitter
Power supply: 6V(2/pcs 3V battery)
Emission Current: 3.9mA
Life of Battery: more than 20000 times
Transmit distance: more than 25M
Operation Temperature: -42℃~45℃
Operation Humidity: 10~90%RH
Dimension: 203mm(L)×41mm（W）×12.5mm(H) (Transmitter)
123mm(L)×50mm (W) ×32mm(H) (Wireless receiver)
