Atur jumlah dan catatan
Stok Total: Sisa 3
Subtotal
Rp17.750.000

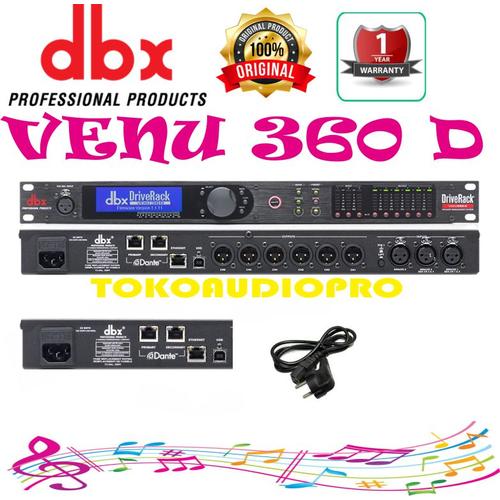

DBX DriveRack VENU-360 D With System Dante Venu360D Dlms Venu360D
Rp17.750.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: DBX
Harga untuk 1 unit
dbx DriveRack VENU360 D Complete Loudspeaker Management System with Dante
Features
Input Processing
dbx Compression
AFS (Advanced Feedback Suppression)
31-Band Graphic EQ
12-Band Parametric EQ (with narrow notch capabilities)
Subharmonic Synthesis
Backline Delay
Noise Gate
Output Processing
Crossover (supports full range up to mono 6-way systems)
12-Band AutoEQs (8 AutoEQ bands, 4 User bands)
dbx Compression
Automatic Gain Control
Subharmonic Synthesis
Noise Gate
Tower Delays (up to 1000ms per output)
8-Band Parametric EQs (used for speaker tunings)
dbx Limiting
Driver Alignment Delays
Tested Wireless Routers:
Dlink 636L
Dlink Cloud router 2000
Cisco / linksys: WRT54G2V1
Netgear WGR614 v7
Netgear WNR 1000
Specifications
Input (3) analog line inputs/(2) AES digital inputs (shared connectors), (1) RTA mic input
Input Connectors (3) female XLRs (2 selectable between analog/AES digital audio formats), (1) female XLR RTA mic input
Input Type Electronically balanced/RF filtered
Input Impedance > 30 kΩ, balanced line to line
Max Input Level (line inputs) > 28 dBu, balanced, ≤1% THD
CMRR > 50 dB @ 1 kHz
RTA Mic Preamp Phantom Power 48 VDC
Output (6) Line Outputs
Output Connectors Male XLR
Output Type Electronically balanced, RF filtered
Output Impedance 120 Ω, balanced line to line
Max Output Level 22 dBu, balanced, ≤1% THD
DANTE Audio Connectors 2 x RJ-45 connectors
DANTE Audio Maximum Cable Length 100m/328ft on Category 5 (100Mbps) or Category 5e/Category 6 (Gigabit) cable between devices
DANTE Latency 0.15ms-5.0ms
Alignment Delay Up to 1000 ms per output channel
A/D Converter 24-bit with dbx Type IV Conversion System
A/D Dynamic Range 117 dB A-weighted, 114 dB unweighted, 22 kHz BW
Type IV Dynamic Range 129 dB with transient material, A-weighted, 22 kHz BW; 126 dB with transient material, unweighted, 22 kHz BW; 121 dB typical with program material, A-weighted, 22 kHz BW
D/A Converter 24-bit
D/A Dynamic Range 116 dB A-weighted, 113 dB unweighted,
dbx DriveRack VENU360 D Complete Loudspeaker Management System with Dante
Features
Input Processing
dbx Compression
AFS (Advanced Feedback Suppression)
31-Band Graphic EQ
12-Band Parametric EQ (with narrow notch capabilities)
Subharmonic Synthesis
Backline Delay
Noise Gate
Output Processing
Crossover (supports full range up to mono 6-way systems)
12-Band AutoEQs (8 AutoEQ bands, 4 User bands)
dbx Compression
Automatic Gain Control
Subharmonic Synthesis
Noise Gate
Tower Delays (up to 1000ms per output)
8-Band Parametric EQs (used for speaker tunings)
dbx Limiting
Driver Alignment Delays
Tested Wireless Routers:
Dlink 636L
Dlink Cloud router 2000
Cisco / linksys: WRT54G2V1
Netgear WGR614 v7
Netgear WNR 1000
Specifications
Input (3) analog line inputs/(2) AES digital inputs (shared connectors), (1) RTA mic input
Input Connectors (3) female XLRs (2 selectable between analog/AES digital audio formats), (1) female XLR RTA mic input
Input Type Electronically balanced/RF filtered
Input Impedance > 30 kΩ, balanced line to line
Max Input Level (line inputs) > 28 dBu, balanced, ≤1% THD
CMRR > 50 dB @ 1 kHz
RTA Mic Preamp Phantom Power 48 VDC
Output (6) Line Outputs
Output Connectors Male XLR
Output Type Electronically balanced, RF filtered
Output Impedance 120 Ω, balanced line to line
Max Output Level 22 dBu, balanced, ≤1% THD
DANTE Audio Connectors 2 x RJ-45 connectors
DANTE Audio Maximum Cable Length 100m/328ft on Category 5 (100Mbps) or Category 5e/Category 6 (Gigabit) cable between devices
DANTE Latency 0.15ms-5.0ms
Alignment Delay Up to 1000 ms per output channel
A/D Converter 24-bit with dbx Type IV Conversion System
A/D Dynamic Range 117 dB A-weighted, 114 dB unweighted, 22 kHz BW
Type IV Dynamic Range 129 dB with transient material, A-weighted, 22 kHz BW; 126 dB with transient material, unweighted, 22 kHz BW; 121 dB typical with program material, A-weighted, 22 kHz BW
D/A Converter 24-bit
D/A Dynamic Range 116 dB A-weighted, 113 dB unweighted,
