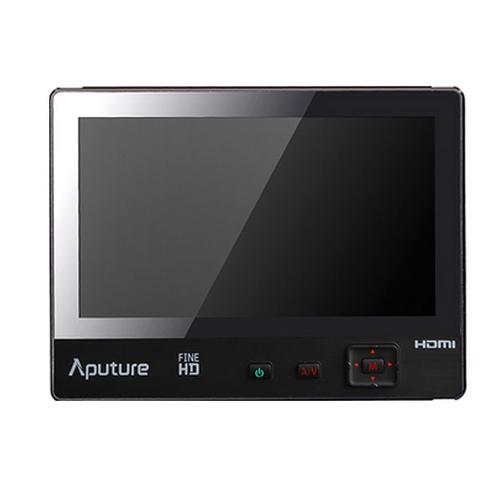

Aputure VS-1 FineHD 7 Inch 1920 x 1200 Video Monitor LTPS Extra OSD Pa

Aputure V-Screen VS-1 FineHD is a professional field monitor with a 7-inch LCD Screen (1920x1200 native resolution), which provides diverse video interface, such as HDMI, YPbPr,and AV. Also, VS-1 FineHD features Monochrome, and Safe Area



Feature :

Slim light body

LTPS screen technology

High resolution 1920*1200

Extra OSD, get more information

Fits various combinations with Magic Hand

Sunshade cover to monitor in bright sunlight

Uses industry-standard 1/4 inch screw mount

Universal hot shoe mount with swiveling head

Supports various signal inputs(HDMI, YPbPr & AV)

New cables(HDMI A type to D type). And Power adapter cable(D type to DC)



Specification :

Model Aputure VS-1 FineHD

Display Panel 7 Inch

Resolution 1920 x 1200

Aspect Ratio 16:9 / 4:3 / Full Screen

Brightness 450cd/m

Contrast 1200:1

Viewing Angle 160/160(H/V)

Pixel Pitch 0.07875 x 0.07875 mm

Input HDMI/ YPbPr/ AV Yes

Aduio Earphone Jack 3.5mm

Power Current 950mA

Imput Voltage DC 7-18V

Power Consumption 7W

Battery Sony NP-F series:NP-F550/F570/F770/F960/F970

NP-FM/QM series:FM50/ FM51/FM55H/ FM500H/QM50/ QM51/QM71D/QM91D

Opertaion Enviroment Opertaion Tempertature 0-55

Storage Tempertature 0-70

Humidity 30-70

Physical Property Dimension 182 x 138 x 23mm

Weight 360g / 12.7oz

Function Multiple shortcut options

Double power supply

Speaker and headset stereo output

Firmware updates via US

Six language choices





Package included :

1 x HDMI (A type-C type)

1 x HDMI (A Type-D Type)

1 x Power Adapter Cable (D tap-DC)

1 x Firmware Update Cable

1 x Warranty Card

1 x Cleaning Cloth

1 x Sun Hood

1 x Universal Hot Shoe Mount

1 x User Manual
