  5. NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal

Foto Produk NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal dari Tokoduino
Thumbnail
Thumbnail
Atur jumlah dan catatan

Stok 77

Tambah Catatan

Subtotal

Rp9.800

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal

Terjual 199
rating 4.6 (43 ulasan)
Diskusi (18)
Rp9.800
  • Kondisi: Baru
  • Berat: 15 Gram
  • Kategori: Lainnya
  • Etalase: PWM CONTROLLER/DIMMER

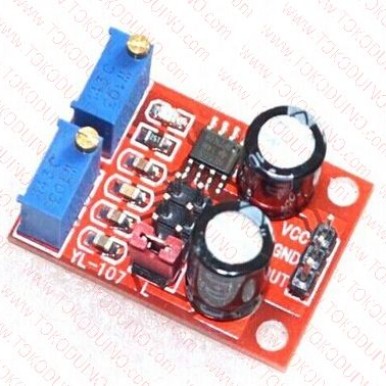

MODULE NE555 adalah modul signal generator yang dapat menghasilkan square wave signal (sinyal gelombang kotak) yang dapat dimanfaatkan untuk aplikasi antara lain: clock generator untuk motor stepper (robotika), rangkaian lampu kedip, dll Visit Tokoduino dot com
Frekuensi gelombang dapat diatur dari 1Hz - 200kHz menggunakan jumper dan trimmer.

Spesifikasi:
- Size: 3.1cm * 2.2cm
- The main chip: NE555
- The input voltage: 5V-15VDC. 5V supply, the output current can be about 15mA; when 12V power supply, the output current can be about 35mA;
- The input current: 100mA
- Visit Tokoduino dot com
- The output amplitude:. 4.2V V-PP to 11.4V V-PP (different depending on the input voltage, the output amplitude will be different)
- The maximum output current: 15mA (5V supply, V-PP greater than 50%), 35mA (12V power supply, V-PP greater than 50%)

Three Advantages:
- The output with LED indication, there is no output straightforward (low level LED quantity, high LED off, LED blinks when the frequency is low);
- Grade selectable output frequency range, the output frequency is more continuously adjustable;
LF file: 1Hz ~ 50Hz
IF file: 50Hz ~ 1kHz
High frequency gear: 1KHz ~ 10kHz
High frequency profile: 10kHz ~ 200kHz
Visit Tokoduino dot com
- The output duty cycle can be fine-tuning, duty cycle and frequency are not separately adjustable, adjusting the duty cycle will change the frequency;

Kumpulan Project menggunakan IC Timer 555:
http://www.circuitsgallery.com/2013/12/top-ten-555-timer-projects.html
http://www.Tokoduino.com
http://www.555-timer-circuits.com/
http://www.instructables.com/id/47-projects-to-do-with-a-555/

Kelengkapan:
1 unit NE555 Module

Tersedia produk2 lainnya, hanya dilapak Tokoduino! :D
