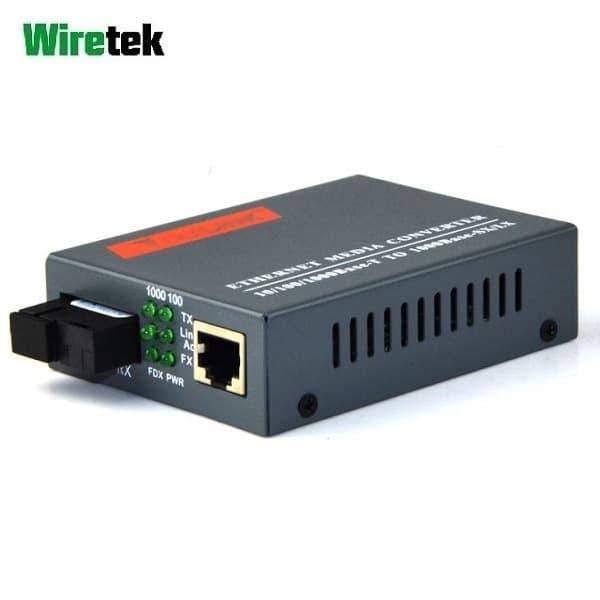

Fiber Optic to Gigabit Ethernet Media Converter HTB-GS-03A Transmitter

Fiber Optic to Gigabit Ethernet Media Converter HTB-GS-03A Transmitter This HTB-GS-03 Media converter is used for the exchanging between Ethernet and Fiber Optic. The machine comprises 1 Ethernet port and 2 fiber port and expanded the LAN cable transmission distance from 100 meters to 2 kilometers. It realized the interconnections between different telecom equipment and widely been used in Telecommunication, CATV, Bandwidth network, CCTV where demands high performance and reliable network environment. Features: - Provide one SC fiber connector and one UTP connector - Fully Complies with IEEE802.3 10Base-T,IEEE802.3u 100Base-TX/IEEE802.3u 100Base-FX,IEEE802.3z 1000Base-FX Standard. - Auto-detection of half/full duplex transfer mode for Tx port - Auto-negotiation of 10/100/1000Mbps rate and Auto-MDI/MDIX for Tx port - Provide switch configuration of half/full duplex transfer mode for Fx port - Extend fiber distance up to 20km for single-mode fiber - 6 LED display for Power, FDX/Col, FX (Link/Act), TX (Link/Act), FX 1000, TX 100Easy-to-view - LED indicators provides status to easily monitor network activity Specifications : - 1000Base-T to 1000Base-SX/LX Media Converter With SFP Slot - Standard Protocol: IEEE802.3 10 Base-T standard, IEEE 802.3u,100Base-TX/FX standard - Connector:one RJ-45connector,one SFP slot - Operation mode: full duplex mode or half duplex mode - Power supply parameter: Outside: 5V DC 1A, Built-in: 110-265V AC 48VDC - Environmental temperature: 0℃-70 ℃ - Relative humidity: 5%-95% - TP cable: Cat5 UTP cable - Dimension: 93 x 70 x 26mm Package Content : 1x Transmitter HTB-GS-03A 1x Power Adaptor
