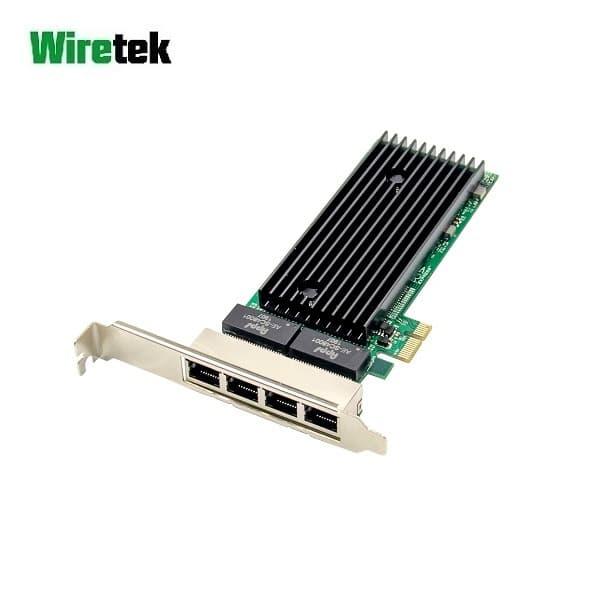

PCI Express LAN RJ45 4port Gigabit Ethernet NIC Wiretek

PCI-E LAN RJ45 4port Gigabit Ethernet NIC Wiretek The Intel 82576 EB Controller is a single, compact, low power component that offers four fully integrated Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports. The 82576 EB enables four-port implementation in a relatively small area and can be used for server system configurations such as rack mounted or pedestal servers, where the 82576 EB can be used as add-on NIC or LAN on Motherboard (LOM) design. Another system configuration is blade servers, where it can be used as LOM. The 82576 EB can also be used in embedded applications such as switch add-on cards and network appliances. Features : - PCIe v2.0 (2.5 GT/s) x4/x2/x1 - Quad Port 10/100/1000Mbps adapters - MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab) - RJ45 Connectivity - Network Virtualization - Improves performance and throughput by reducing the I/O overhead due to the software virtualization layer - Data Plane Development Kit (DPDK) support - Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistic counters - Low profile and full-height bracket Specifications : - Brand : Wiretek - Chipset : Intel JL82576EB - Bus Slot : PCI Express X1 - Interface : 4x RJ45 ( Copper ) - IEEE Standard : IEEE 802.3, 10BASE-T / 100BASE-TX / 1000BASE-T, IEEE 802.3z, IEEE 802.3Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az - Function : IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering - System : Win 7 / Server2012 / Server2008 / Win 8 / Win 8.1 / Server2016 / Win10 / FreeBSD / Linux / VMWare ESXi Package Content : 1x PCI-E LAN RJ45 4port Gigabit Ethernet NIC 1x Mini Bracket ( Low Profile ) 1x CD Driver 1x User Manual
