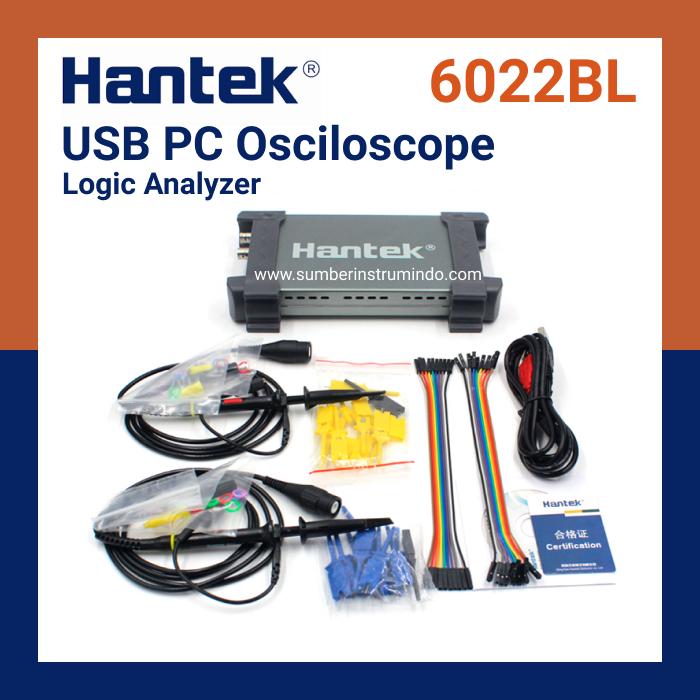

PC USB Oscilloscpe Hantek 6022BL 2 Ch 20MHz 16 Channels Logic Analyzer

Features:

-Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
-Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
-USB2.0 interface, no external power source required, easy to use.
-Be suitable for notebook computer, product line maintenance, be used easily on business.
-Dimensions (mm): approx. 205(L) x120(W) x35(H).
-High performance, 48MS/s real-time sampling, 20MHz bandwidth.
-16Channels Logic Analyzer, 20MHz Bandwidth.
-Operating System: Windows8, Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
-23 measurement functions, PASS/FAIL Check, be suitable for technical application.
-Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
-Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
-FFT.
-One computer can connect many DSO, extend channel easily.

Specifications :

Bandwidth 20MHz
Channel 2(Digital)+16(Logic)
Sample Rate 48MSa/s
Memory Depth 1M
Rise Time 17.5ns
Time Base Precision 50ppm
Time Base Range 4ns/div-1h/div (Step by1-2-4)
Input Impendence 1M 25pF
Input Sensitivity 10mV/div-5V/div
Vertical Resolution 8Bit
Vertical Position Range 10mV ~ 5V/div x1 probe; 100mV ~ 50V/div x10 probe;
1V ~ 500V/div x100 probe; 10V ~ 5KV/div x1000 probe
DC Accuracy 3%
Bandwidth Limited 20MHz
Trigger Type Edge, Alternative
Trigger Source CH1, CH2, EXT, EXT/10
Math +,-,x,÷,FFT, Invert
Cursor Measurement Cross, Trace, Horizontal, Vertical
Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Logic Analyzer Features
Channel 16
