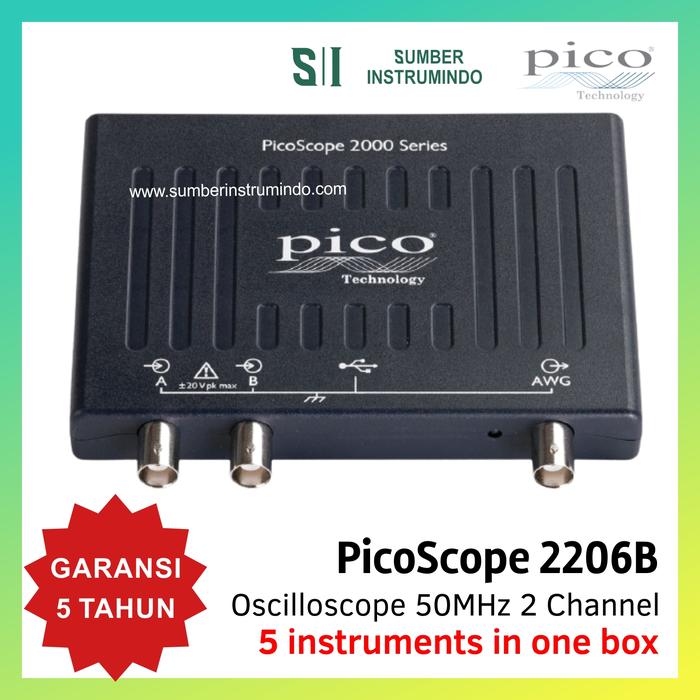

PicoScope 2206B Oscilloscope 50MHz Bandwidth, 2CH, 500MS/s

PICO GARANSI 5 TAHUN DARI LOKAL DISTRIBUTOR - SUMBER INSTRUMINDO

PASTIKAN BERBELANJA DI LAPAK TOKO MERCHANT YANG BERBAYAR KE TOKPED (POWER MERCHANT) SERTA DISERTAI TOKO FISIK, UNTUK JAMINAN CLAIM GARANSI.

Pico 2206B PicoScope Oscilloscope 50MHz Bandwidth 2 ch + Function Generator 1MHz + Arbitrary Waveform Generator 20MHz + Spectrum Analyzer + Serial Decoding Protocol (5 instruments in one box) FROM United Kingdom.

The PicoScope 2000 Series oscilloscopes offer a small, light, modern alternative to bulky benchtop devices. They are perfect for engineers on the move and ideal for a wide range of applications including design, test, education, service, monitoring, fault finding and repair.

The PicoScope 2206B is a full-featured 2-channel PC oscilloscope with:

• 2 channels
• 50 MHz bandwidth
• 500 MS/s sampling rate
• 8-bit resolution
• Function generator / arbitrary waveform generator
• Advanced digital triggers
• Persistence display modes
• Mask limit testing
• Math channels
• Spectrum analyser
• Serial bus decoding
• USB connected and powered
• Free software upgrades

Sampling rate 500 MS/s real-time sampling rate, 2 GS/s in ETS mode
Buffer memory 32 MS, 100 MS in USB streaming mode
Waveform buffer Up to 10 000 waveform circular buffer
Trigger modes Edge, window, pulse width, window pulse width, dropout, window dropout, interval, logic
Waveform update rate 80 000 per second
Serial decoding 1-Wire, ARINC 429, CAN, DCC, DMX512, FlexRay, Ethernet 10Base-T, USB 1.1, I²C, I²S, LIN, PS/2, SPI, SENT, UART/RS-232
Filters Highpass, lowpass, bandpass, bandstop filters.
PC connection USB 2.0 (USB 3.1 compatible). Powered from USB port
Software PicoScope 6 for Microsoft Windows 7, 8 and 10, PicoScope 6 (beta) for Linux and OS X, 32-bit and 64-bit SDK for Windows 7, 8 and 10
Warranty 5 years
