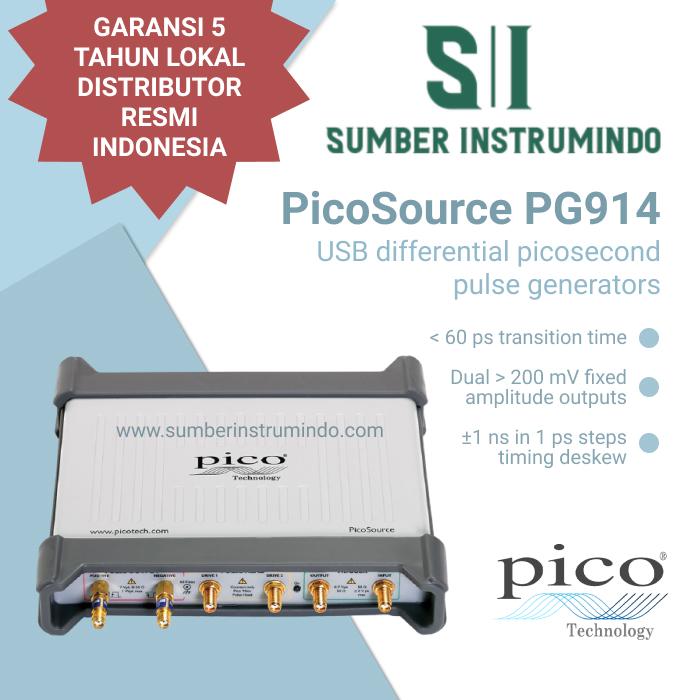

PicoSource PG914 USB Differential Pulse Generator

The PicoSource PG900 Series are low-jitter triggered differential USB pulse generators.
Pulse outputs are optimized for broad spectral content (fastest transition time) to best suit spectral and time-domain transmission and reflectometry measurements.


An internal clock is provided for stand-alone, self-triggered operation and trigger input and output allow the generators to source or respond to system triggers. Differential outputs ensure that the proliferation of gigabit differential interconnect and systems can all be addressed (e.g. SATA, USB3, HDMI, Ethernet). Source PG914 40ps/60ps pulse output generator PG914 USB Differential Pulse Generator, 2 x lt;60 ps + 2 x lt;40 ps Outputs Integral 50 O SMA(f) Step Recovery Diode outputs lt; 60 ps transition time Dual 2.5 to 6 V variable amplitude outputs ±1 ns in 1 ps steps timing deskew 200 ns to 4 µs pulse width 1 µs to 1 s internal clock period lt; 3 ps RMS jitter relative to external trigger –20 dB 10 GHz SMA(m-f) attenuator included with Step Recovery Diode outputs External 50 Ω N(m) positive and negative Tunnel Diode pulse heads lt; 40 ps transition time Dual gt; 200 mV fixed amplitude outputs.


PICO GARANSI 5 TAHUN DARI LOKAL DISTRIBUTOR - SUMBER INSTRUMINDO PASTIKAN BERBELANJA DI LAPAK TOKO MERCHANT YANG BERBAYAR KE TOKPED (POWER MERCHANT) SERTA DISERTAI TOKO FISIK, UNTUK JAMINAN CLAIM GARANSI.
