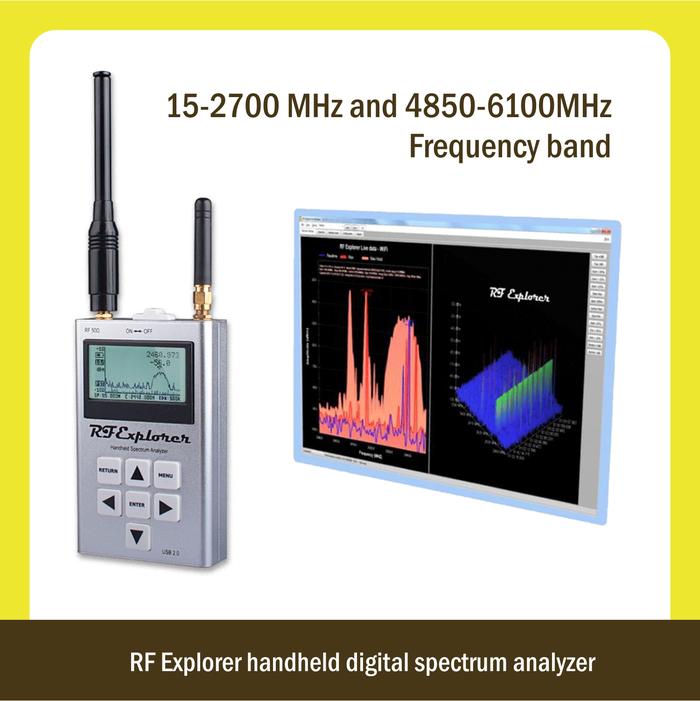

RF Explorer 6G Combo Handheld Spectrum Analyzers

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double-balanced mixer which offers high performance, compact size, low consumption, and low cost.
It has been designed to be used equally well indoor and outdoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

Features
- Solid aluminum metal case
- Includes a transport EVA carry case for RF Explorer
- Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite, and Averaging modes
- High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
- Windows PC client Open Source
- Wideband coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz, as well as 4.85-6.1GHz. This includes very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.

Battery : Lithium Cells / Batteries contained in equipment UN3481 - PI967
Frequency band : 15-2700 MHz and 4850-6100MHz

Frequency Span
Left SMA port (6G) : 2-600Mhz
Right SMA port (WSUB3G) : 112KHz - 600MHz

2 standard SMA 50 ohms Spectrum Analyzer connectors
Left SMA port (6G) : 4850-6100MHz
Right SMA port (WSUB3G) : 15-2700 MHz
Amplitude resolution : 0.5dBm

Dynamic range
Left SMA port (6G) : -105dBm to -15dBm
Right SMA port (WSUB3G) : -110dBm to -10dBm

Absolute Max input power
Left SMA port (6G) : +25dBm
Right SMA port (WSUB3G) : +30dBm
Average noise level (typical) : -105dBm

Frequency stability and accuracy (typical)
Left SMA port (6G) : +-0.5ppm
Right SMA port (WSUB3G) : +-10ppm

Amplitude stability and accuracy (typical)
Left SMA port (6G) : +-3dBm
Right SMA port (WSUB3G) : +-6dBm
Frequency resolution : 1Khz

Resolution bandwidth (RBW)
Left SMA port (6G) : automatic 58Khz to 812Khz
Right SMA port (WSUB3G) : automatic 3Khz to 600Khz
PC Windows client :supports Windows XP/Vista/Win7 both 32 and 64bits
