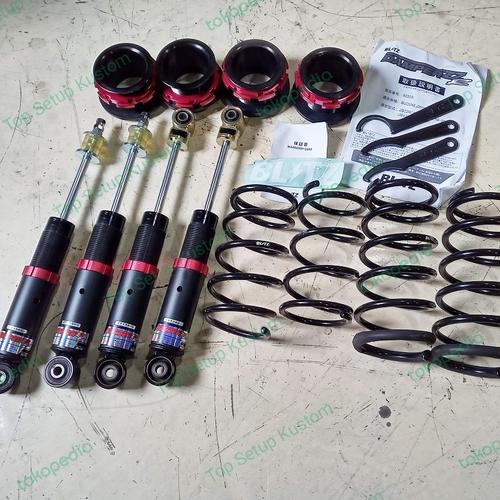

BLITZ Damper ZZ-R Coilovers Suzuki Jimny JB74W K15B

Monotube design
32 stage damping adjustment

Spring rate front/rear (kgf/mm): 2.3/2.5
Free length
front/rear (mm): 250 200/215
Type front/rear: BS/BS
Height adjustment range (front): -50 to -13
Height adjustment range (rear): -55 to -18

* Panel, speaker board, and etc. needs to be modified when installing Rear Click Dial.
* Ride height adjustment range was calcurated in theory when adjusting the ride height at Lower bracket side. If interference/damage is occured by changing the ride height significantly from the factory default, we do not take any responsibility or liability even if the ride height adjustment range is inside the range described in the compatibility table. (The adjustment range may change depending on the grade, vehicle weight, vehicle's individual difference, etc.)
* Interference with inner fender etc might be occured even if the ride height is set within the ride height adjustable range. (Minimum ground clearance needs to be checked individually before setting the ride height.)
* The products which adopted "OEM upper mount" or "OEM rubber mount" require some OEM parts.
* When installing DAMPER ZZ-R, especially in the case of strut suspensions, interference with shock absorber might be occured even if OEM wheesl/tires are used.
* It might be possible that the radar, camera, sensor, etc may malfunctions by installing DAMPER ZZ-R since the recognition range is different from the normal state. (We do not take responsibility or liability for not only the malfunction itself of radar, camera, sensor, etc, but also any damage/loss caused by the malfunctions of safety devices, collision avoidance support devices etc.)
* It might be possible that B.R.A.I.N. does not connect depending on the manufactured year.
