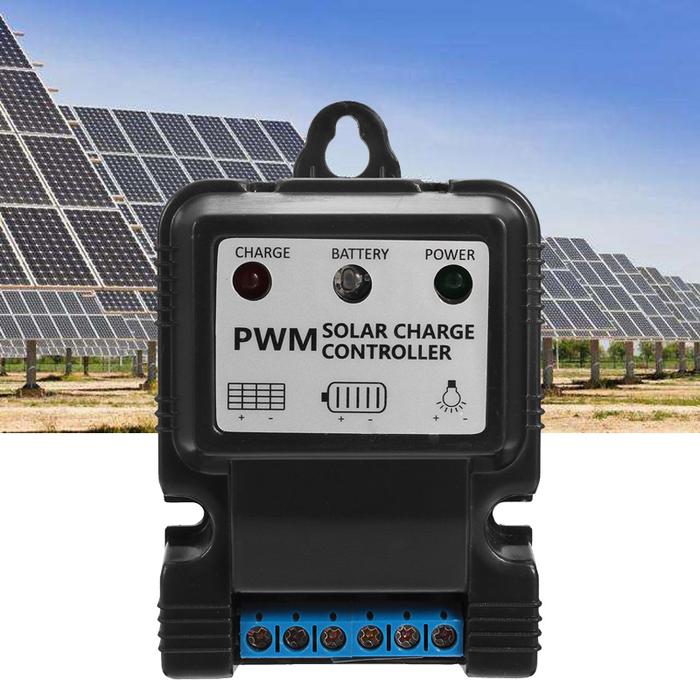

HOTT 11.1V 5A PWM Solar Power Controller Intelligent Multiple

11.1V 5A PWM Solar Power Controller Intelligent Multiple Protection Controller

Semua Produk Di Toko Kami PO (Personal Pre-Order) 7-10 Hari. Harap Chat Terlebih Dahulu Sebelum Order Atau Anda Setuju Dengan Waktu Pre-Order Yang Kami Tetapkan Secara Default 15-Hari
Features:
-PWM control.
-Three-stage charging.
-Multiple dimmer mode.
-Multiple protection: Overcharge protection / Short circuit protection / Overfall protection / Open circuit protection / Reverse connect protection / Temperature compensation.
-IP40 waterproof.

Specification:

Charging mode: PMW mode
Current: 5A
Voltage: 11.1 V
The input power: ≤60W
The input voltage: 25V
Overload, short circuit protection: 1.5 times the rated current delay closed 5 minutes, automatic recovery after 5 minutes, 3 times rated current or short circuit protection
Charging circuit step-down: ≤700mV
Discharge circuit voltage: ≤100mV
Overvoltage protection voltage:13.6V±1.5%
Overpressure recovery voltage: 13.1V±1.5%
Put protection voltage: 9.0V±1.5%
Put the recovery voltage: 11.1V±1.5%
Charge cut-off voltage: 12.6V ±1.5%
Charging return voltage: 11.1V ±1.5%
Bai Tianshe don't voltage: 7.0V± 1.5%
The night don't voltage: 3.0V±1.5%
Working temperature: -30°C - + 55°C
Storage temperature: -45°C- + 70°C
Humidity: 90% RH or less
Protection grade: IP40
Size: 53.4 x 68.6 x 22mm
Install line number: AWG22-14/2mm²

Package included:

1 x Solar Charge Controller


ID - 1208144
