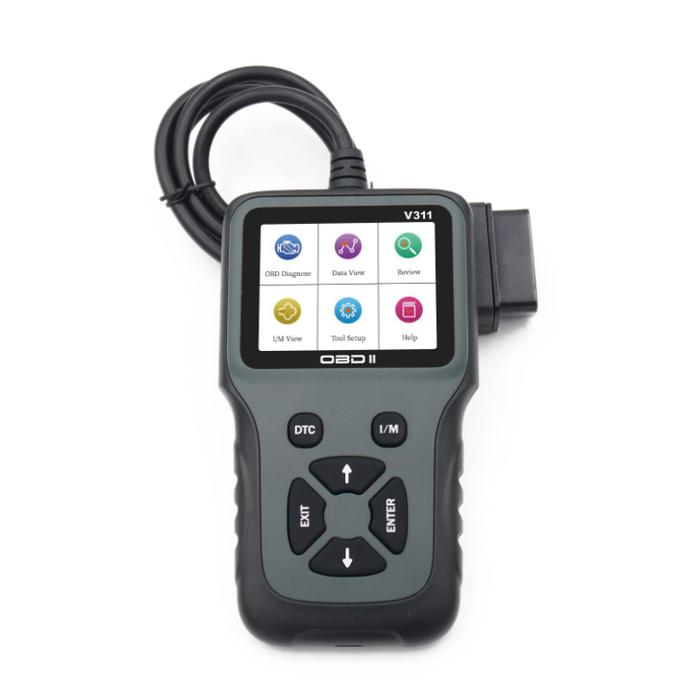

HOTT V311 OBD2 EOBD Car Diagnostic Scanner Tool Automotive OBDII

V311 OBD2 EOBD Car Diagnostic Scanner Tool Automotive OBDII Engine Fault Code Reader Color Screen

Semua Produk Di Toko Kami PO (Personal Pre-Order) 7-10 Hari. Harap Chat Terlebih Dahulu Sebelum Order Atau Anda Setuju Dengan Waktu Pre-Order Yang Kami Tetapkan Secara Default 15-Hari

Feature:
1. Support 9 kinds of standard protocols of 0BD II/EOBD.
2. Support OBD function such as vehicle diagnosis and real-time data flow.
3. with data waveform display, data storage and playback functions.
4. Data with emission detection.
5. color LCD display, high resolution.
6. the reliability is good, the power supply voltage range is 836V, with stronger overcurrent and overvoltage protection functions.

Specification:

Main control chip
STM32F103VET6
Working voltage
DC 8~36V
Working current
58mA
Operating environment
a 20~65C
Storage temperature
-30~80C
Dimensions
156*88*24mm
Product weight
198g
Supported Agreements:
_x0007_†SAE J1850 PWM (41. 6 Kbaud)
_x0007_†SAE J1850 VPW (10. 4 Kbaud)
_x0007_†ISO 9141-2 (5 baud init, 10.4 Kbaud)
_x0007_†ISO 14230-4 KWP (5 baud init, 10. 4 Kbaud)
_x0007_†ISO 14230-4 KWP (fast init, 10. 4 Kbaud)
_x0007_†ISO 15765-4 CAN (11bit ID, 500 Kbaud)
_x0007_†ISO 15765- 4 CAN (29bit ID, 500 Kbaud)
_x0007_†ISO 15765-4 CAN (11bit ID, 2500 Kbaud)
_x0007_†ISO 15765-4 CAN (29bit ID, 250 Kbaud)
Supported Vehicle Data:
1.R ead the error diagnosis code
2.Clear the original ceramic code (clear the error code and turn off the MIL)
3.Engine revolutions per minute (RPMO)
4.Calculated load value
5.Coolant temperature
6.Fuel system status
7.Speed
8.Short-term fuel situation
9.Long-term fuel situation
10.Intake manifold pressure
11.Injection advance time
12.Intake air temperature
13.Air flow speed
