HOTT WMSR-OL-22 Electronics High Precision Photoelectric
Rp206.000
- Kondisi: Baru
- Waktu Preorder: 15 Hari
- Min. Pemesanan: 1 Buah
- Etalase: Import

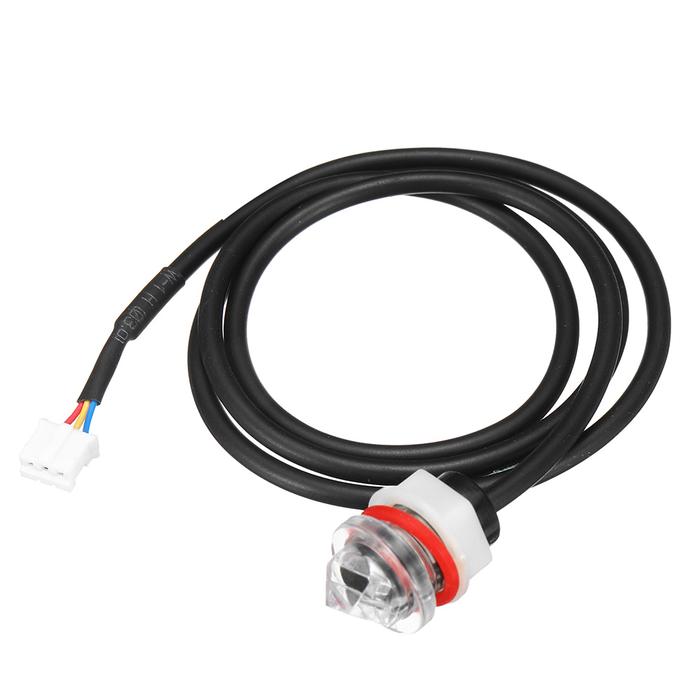

WMSR-OL-22 Electronics High Precision Photoelectric Level Sensor Water Level Sensor Module for Humidifier
Semua Produk Di Toko Kami PO (Personal Pre-Order) 7-10 Hari. Harap Chat Terlebih Dahulu Sebelum Order Atau Anda Setuju Dengan Waktu Pre-Order Yang Kami Tetapkan Secara Default 15-Hari
Features
1. No mechanical moving parts, high reliability
2. Small size, can be installed in any direction
3. Meet the requirements of safety regulations
4. Meet Rohs requirements
5. High precision of level control
Specification:
Name: photoelectric level sensor
Model: WMSR-OL-22
Voltage: 5V-12V
Current: 10MA
Output mode: high and low level
level detection accuracy: ±0.5mm
Use and test:
After installing the level sensor, connect it according to the following circuit, and the signal terminal will output a voltage signal consistent with the water level condition. This signal is used as a level height control signal to be connected to the MCU (microcontroller) A/D (analog-to-digital conversion) Port, when the level exceeds the critical level and the sensor body is flooded, the signal output is low voltage at this time, and when the level is lower than the critical level and the sensor body is exposed, the signal output is high voltage at this time.
Use range:
1. Humidifier, water heater, water dispenser.
2. Water pump, bathtub, sanitary ware, medical equipment.
3. Steam and other electrical appliances and equipment that require level control.
Package included:
1 x Photoelectric Level Sensor
ID - 1884719
Semua Produk Di Toko Kami PO (Personal Pre-Order) 7-10 Hari. Harap Chat Terlebih Dahulu Sebelum Order Atau Anda Setuju Dengan Waktu Pre-Order Yang Kami Tetapkan Secara Default 15-Hari
Features
1. No mechanical moving parts, high reliability
2. Small size, can be installed in any direction
3. Meet the requirements of safety regulations
4. Meet Rohs requirements
5. High precision of level control
Specification:
Name: photoelectric level sensor
Model: WMSR-OL-22
Voltage: 5V-12V
Current: 10MA
Output mode: high and low level
level detection accuracy: ±0.5mm
Use and test:
After installing the level sensor, connect it according to the following circuit, and the signal terminal will output a voltage signal consistent with the water level condition. This signal is used as a level height control signal to be connected to the MCU (microcontroller) A/D (analog-to-digital conversion) Port, when the level exceeds the critical level and the sensor body is flooded, the signal output is low voltage at this time, and when the level is lower than the critical level and the sensor body is exposed, the signal output is high voltage at this time.
Use range:
1. Humidifier, water heater, water dispenser.
2. Water pump, bathtub, sanitary ware, medical equipment.
3. Steam and other electrical appliances and equipment that require level control.
Package included:
1 x Photoelectric Level Sensor
ID - 1884719
