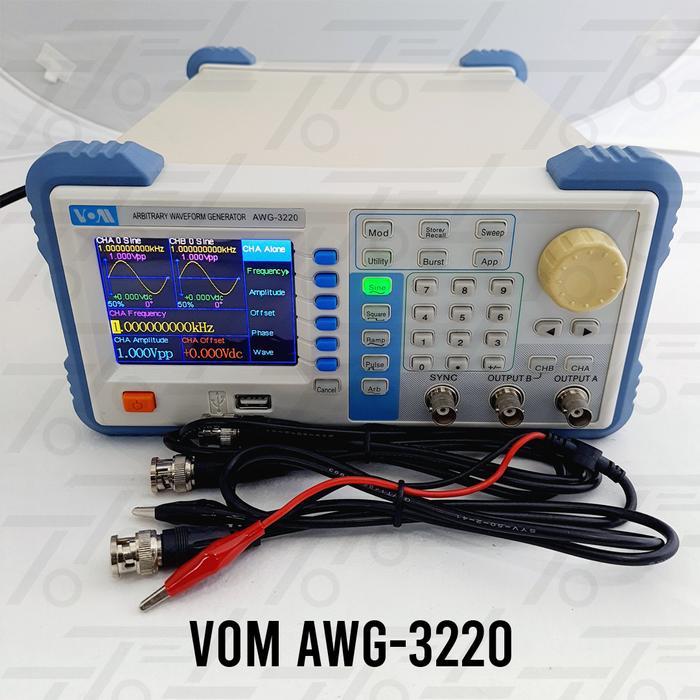

VOM AWG-3220 Digital Function Generator 20 MHz / Waveform Generator

VOM AWG-3220 Digital Function Generator 20 MHz / DDS Waveform Generator 20 MHz

Features :

With DDS digital synthesis technology, you can obtain accurate, stable, low distortion output signal.

3.5" TFT LED Colour LCD Display.

180MSa/s sampling rate, 12bit resolution.

Frequency characteristic :
Sine wave : 1µHz ~ 20 MHz / 1µHz ~ 40 MHz
Square wave : 1µHz ~ 5 MHz
Sawtooth wave : 1µHz ~ 1 MHz
Pulse wave : 1µHz ~ 3 MHz
Random wave : 1µHz ~ 1 MHz

Output waveform :
Sine wave, square wave, sawtooth wave, pulse wave, yawp, exponential increase, exponential decline, sine wave, and some other waveforms, 33 kinds of waveforms in total.

With a wealth of modulation function, output various modulation waveform :
Amplitude modulation (AM), frequency modulation (FM), amplitude shift keying (ASK), frequency shift keying (FSK), phase shift keying (PSK), sweep frequency (SWEEP), burst (Burst).

Various input / output :
Waveforms output, the synchronization signal output, the external modulation source, the external tregger input.

Support plug and play USB storage device.
