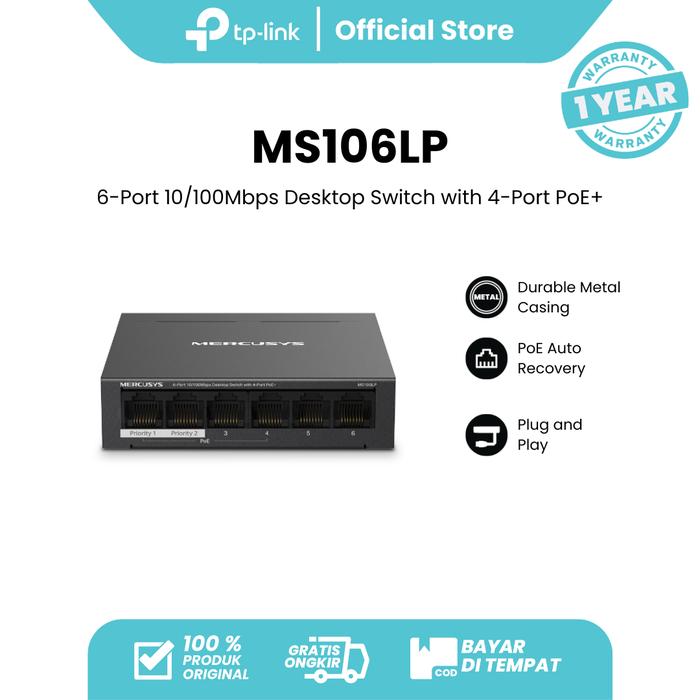

Mercusys MS106LP 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ Metal - MS106LP

MS106LP
6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

FEATURES:

● 6 Ports: 6× 10/100 Mbps RJ45 ports with 4 PoE+ ports
● Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
● High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports*
● 2× Uplink Ports: MS106LP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
● Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
● Isolation Mode: One click to divide traffic for specific ports for stability and security
● Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
● Durable Metal Casing: Allows for efficient heat dissipation and long network life
● Plug and Play: Simple to use and saves time and effort
● PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

SPECIFICATIONS:

★ Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
★ Forwarding Mode: Store and Forward
★ Switch Capacity: 1.2 Gbps
★ MAC Address Table: 2k, Auto-learning, Auto-aging
★ LED: Power, Link/Act, PoE Status
★ Dimensions: 99.8*98*25mm (3.9*3.9*1.0 in)
★ Certification: CE, ROHS
★ Jumbo Frame: 2 KB
★ Mac Address Table: 2K
★ Interfaces: 6x 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
★ External Power Supply: External Power Adapter (Output: 53.5V/0.81A)


PACKAGE CONTENTS:

1 x 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP)
1 x Power Adapter
1 x Quick Installation Guide
