test ndt magnetic pie gauge field indicator magnaflux yoke shaped MT particle inspection testing machine magna flux mpi original - magnaflux

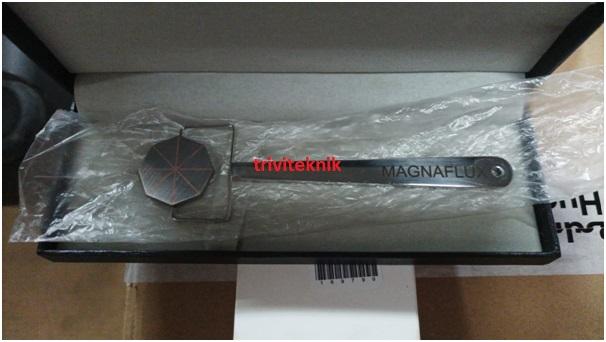

The Magnaflux Magnetic Pie Field Indicator, also known as a pie gauge, is a device used as an aid in determining the direction of magnetic field for detection of discontinuities in ferrous materials. It is an octagon shaped piece made with a low retentive steel surface having eight bonded slices, similar to pieces of pie. The octagon shaped piece is mounted on a handle so the inspector can place it on the part in the area being magnetized.With an adequate amount of magnetizing current and proper particle application, the pie gauge will show indications in the same direction natural indications would appear. Magnetic Field Indicator Pie Gauge for NDT MT Particle Inspection Machine Specifications Compliance: ASME BPVC ASTM E709 ASTM E1444 Model number Pie gauge 1 set trivi Product name Magnetic Field Indicator Keyword Pie gauge for Magnetic Particle Inspection Warranty 3 years Place of Origin Beijing, China Model Number Pie gauge Type NDT testing
