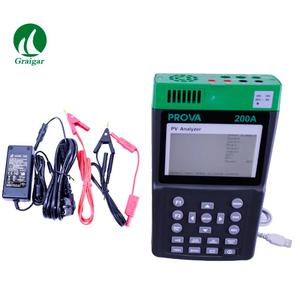

PROVA200 Solar Module Analyzer Solar power Meter PV Analyzer

Electrical Specifications (23C±5C)

Voltage Measurement:
Range (60V / 6A)

Resolution

Accuracy

0–6V
0.001V
±1% ± (1% of Vopen ± 9mV)
6 - 10V

0.001V

±1% ± (1% of Vopen ± 0.09V)
10–60V
0.01V
±1% ± (1% of Vopen ± 0.09V)
Current Measurement:
Range (60V / 6A)

Resolution

Accuracy

0–0.6A
0.1mA
±1% ± (1% of Ishort ± 0.9mA)
0.6 - 1A

0.1mA

±1% ± (1% of Ishort ± 9mA)

1–6A
1mA
±1% ± (1% of Ishort ± 9mA)
Current Simulation:
Range (60V / 6A)

Resolution

Accuracy

0–1A
0.1mA
±1% ± 0.9mA
1–6A
1mA
±1% ± 9mA
General Specifications:

Battery Type:
Rechargeable, 2500mAh (1.2V) x 8

AC Adaptor:
AC 110V or 220V input,
12V/ 1 ~ 3A output

Dimension:
257 (L) x 155 (W) x 57 (H) mm
10.1 (L) x 6.1 (W) x 2.2 (H) in

Weight:
1160 g / 40.0 oz
(battery included)

Accessories:
Users manual x 1, AC adaptor x 1
RS232C (to USB Bridge) Cable x 1
Rechargeable batteries x 8
Software CD x 1
Kelvin Clips (6A max) x 1 set
