Eversolo DMP A8 High Resolution Music Streamer

Eversolo DMP-A8 Music Streamer with
AK4191EQ+AK4499EX DAC
Garansi resmi 1 tahun eversolo Indonesia

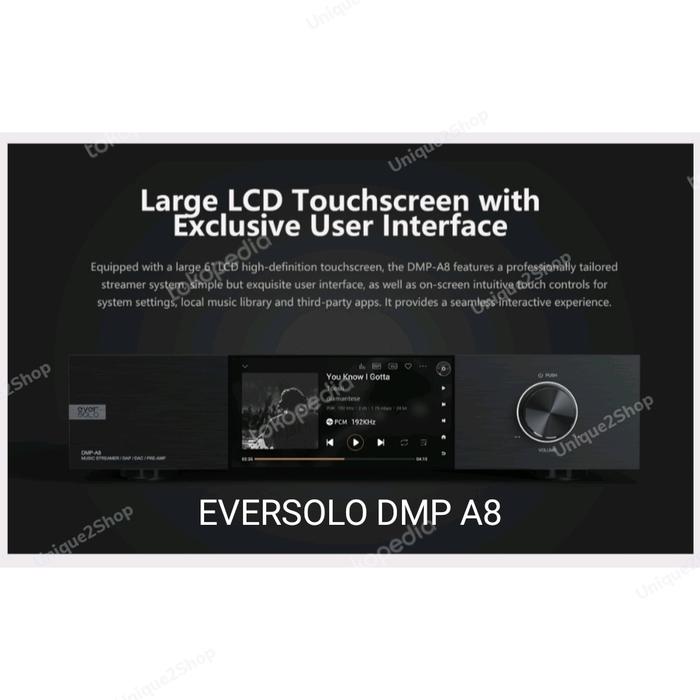

Display Screen
6-inch (diagonal) LCD touchscreen

Internal Memory
4GDDR4 +64GeMMC

DAC
ESS AK4191EQ+AK4499EX


Audio Processor
XMOS XU316

Op-amp Chip
OPA1612

Power Supply
High-quality, low-noise linear + digital dual power supply

SSD (sold separately)
M.2 NVME 3.0 2280 protocol, up to 4TB


Ethernet
RJ-45 (10/100/1000 Mbps)


WiFi
2.4G+5G dual band


Playback and DAC Decoding
Up to stereo DSD512, PCM 768KHz 32Bit, MQA


Bluetooth Audio Input
Qualcomm QCC5125 Bluetooth module, BT5.0
Supports SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol

USB (USB-A x 2, USB-C) Audio Input
USB Audio Compatibility: Windows (7, 10), Mac, Android, iOS
Support up to stereo DSD512, PCM 768KHz 32Bit, MQA


Optical/Coaxial Audio Input
Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

Optical/Coaxial Audio Output
Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

HDMI ARC
Up to stereo PCM 192KHz 24Bit

IIS Audio Output
Support up to stereo DSD512, PCM 768KHz 32Bit

Analog Audio Outputs
XLR (balanced)
RCA

XLR Output
Output level: 4.2V
Frequency response: 20Hz~20KHz(±0. 25dB)
Dynamic range: > 128dB
SNR: >128dB
THD+N: <0.00009%(-120dB) @A-wt
Crosstalk: >-121dB

RCA Output
Output level: 2.1V
Frequency response: 20Hz~20KHz (±0.25dB)
Dynamic range: > 125dB
SNR: >125dB
THD+N: <0.00010%(-119dB)@A-WT
Crosstalk: >-121dB

Power Input
AC 110~240V 50/60Hz

Rated Power
16W

Dimensions
L 388mm x W 248mm x H 90mm
L 15.28in x W 9.76in x H 3.54in

In the Box
DMP-A8, power cable, USB cable, screwdriver, user manual
