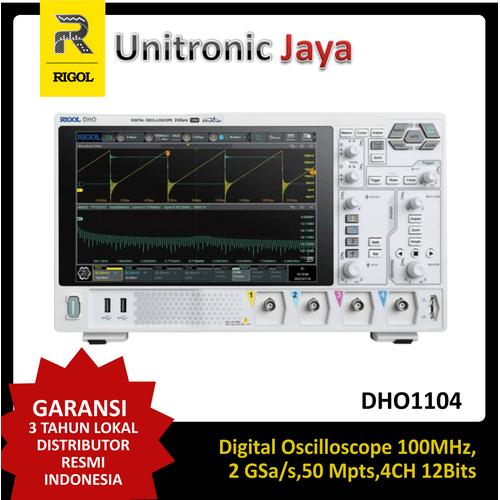

Rigol DHO1104 Digital Oscilloscope 100MHz, 2 GSa/s, 50 Mpts (100 Mpts optional), 4CH, 12Bits, 10" Touch Screen, Serial decoders for I²C, SPI, RS232/UART, CAN and LIN are already included!

Rigol DHO1104 Digital Oscilloscope 100MHz, 2 GSa/s, 50 Mpts (100 Mpts optional), 4CH, 12Bits, 10" Touch Screen, Serial decoders for I²C, SPI, RS232/UART, CAN and LIN are already included!

Highlight :
- Ultra-low noise floor for cleaner signals, measuring small signals more accurately
- 12-bit resolution (212=4096) to see the most signal detail
- Up to 2 GSa/s real-time sample rate
- A maximum of 100 Mpts memory depth, capturing more detailed signals over longer time spans
- Standard serial decoding: SPI, I2C, RS232/UART, CAN, and LIN
- 10.1-inch large HD touch display (1280 x 800) designed for better touch interactions
- Front-panel Flex Knobs, bringing smoother interaction and easier measurements

Features :
• Brand-new chipset "Centaurus" developed by RIGOL
• Ultra-low noise floor for cleaner signals, measuring small signals accurately
• 12-bit vertical resolution[1]
• 100 MHz analog bandwidth (selectable), 4 analog channels, and 1 EXT channel
• Up to 2 GSa/s real-time sample rate
• Max. memory depth: 100 Mpts (optional)
• Vertical sensitivity range: 500 μV/div to 10 V/div
• Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
• 10.1'' 1280*800 HD touch display
• User-friendly Flex Knobs, bringing smoother interaction
• Standard photoelectric encoder operating knobs, effectively prolonging its service life
• Standard USB Device & Host, LAN, and HDMI interfaces

Standard Accessories
Power cord (based on destination country) — —
USB Cable — —
4 Passive HighZ Probes (150 MHz), Standard for DHO1104 - PVP3150

Garansi 3 Tahun Full Service & Suku Cadang dari Distributor Resmi - PT. Unitronic Jaya

more info : www dot unitronicjaya dot com
www dot rigol-indonesia dot co dot id

Optional belum termasuk dalam harga
Sebagian Gambar merupakan ilustrasi
