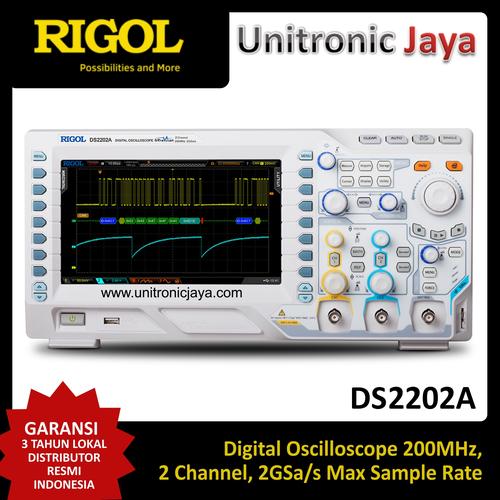

Rigol DS2202A 200 MHz Digital Oscilloscope with 2 channels 2GSa/s

Rigol DS2202A 200MHz, 2CH, 2GSa/s multi-functional high performance Digital Oscilloscope

Specification :
" 200MHz bandwidth, 2 channels, with selectable 50Ω input impedance
" Maximum sample rate 2GSa/s
" Vertical scale 500μV/div to 10V/div
" Memory depth up to 56Mpts
" Innovative “UltraVision” technology
" Up to 50,000wfms/s waveform capture rate
" Up to 65,000 frames real-time waveform record, replay & analysis functions
" 8″ WVGA (800×480) TFT LCD display, 256 intensity grading levels
" Up to 17-off trigger functions, including various protocol triggers
" Auto measurement of 29 waveform parameters, with statistics
" Built-in FFT with a choice of window functions
" Pass/fail test function
" Various waveform math functions
" Supports internal and external storage of instrument settings, waveforms, screen images and parameters
" PictBridge printer support
" Built-in help facility
" Connectivity: USB Host & Device, LAN(LXI), AUX Output, (USB-GPIB, optional)
" Supplied with… 2-off passive probes (350MHz), USB cable, UK & European mains leads, quick guide
" Options excluded… Advanced trigger functions, RS232/I2C/SPI decoding, CAN-bus analysis, software options bundle.

Standard Accessories :
Power Cord conforming to the standard of the country -
USB Data Cable - CB-USBA-USBB-FF-150
2 Passive Probes (350 MHz) - PVP2350
Quick Guide (Hard Copy) -

Warranty 3 Years from Lokal Distributor Resmi Indonesia - Unitronic Jaya

Options belum termasuk dalam harga
Video & Gambar hanya ilustrasi
