RIGOL DSA705 Spectrum Analyzer up to 500MHz

GARANSI 3 TAHUN DARI LOKAL DISTRIBUTOR RESMI INDONESIA

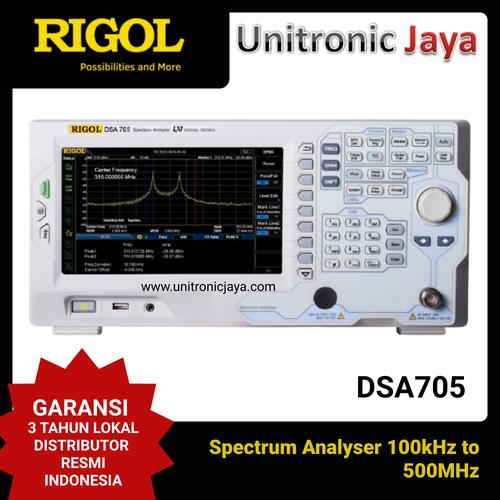

Rigol DSA705 Spectrum Analyzer 500MHz

Note : Beberapa pelapak menjual spek-an tanpa garansi RESMI distributor di Indonesia, pastikan brg yg dibeli bergaransi RESMI di Indonesia dengan dukungan lokal workshop repair & lokal technical support untuk dukungan teknis selama pemakaian bukan menjual secara putus

Features:
-All-Digital IF Technology
-Frequency Range from 100 kHz up to 500 MHz
-Min. -130 dBm Displayed Average Noise Level (Typ.)
-Min. -80 dBc/Hz @ 10 kHz Offset Phase Noise
-Level Measurement Uncertainty 1 .5 dB
-100 Hz Minimum Resolution Bandwidth
-2FSK modulation signal measurement and analysis option (2FSK-DSA)

Specification :
-Frequency Range : 9 kHz to 500 MHz
-DANL *1 -110 dBm, typical
-Phase Noise -80dBc/Hz @10kHz offset, typical
-Minimum RBW 100Hz
-Interface : USB host & device, LAN, GPIB (optional), 10 MHz REF In, 10 MHz REF Out, -External Trigger In
-Dimensions Width X Height X Depth = 14.2 in. X 7.0 in. X 5.0 in.
(361.6 mm X 178.8 mm X 128 mm) ;
