Single Axis Solar Tracking Module - Solar Automatic Tracker - Modul Pengarah Matahari Otomatis - 5Volt

Specifications:

Voltage: DC 5-5.5V
Current: less than 1.5A

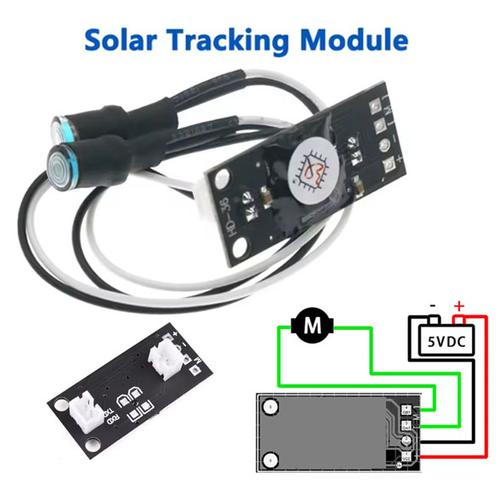

Interface: power supply (+ -), motor M

Principle: use an occlusive object on the photosensitive resistor.When the light strikes the occlusive object and forms a shadow, when the photosensitive value on one side is different from that on the other side, control the motor to find the balance point, namely the light source center.

The power supply USES A dc power supply of 5-5.5v, and the current of 1.5a is enough.

Motor use speed motor, the slower the better. When the power supply is 5V, no load is taken and the speed is stable. If the motor speed is too fast, it may cause that the motor does not align with the center of the light source and swings from side to side, but does not dither.

This circuit adopts the short delay of anti-dither.

The connection between the motor and the plate is not divided into positive and negative poles. During the test, if the motor is found to rotate reversely to the light source, the motor line shall be switched.

The power supply must be regulated 5-5.5v, and cannot be directly connected to solar panels.

The accuracy of tracking Angle is related to the position of probe, Angle and size of shading object. If you are not on time, please check by yourself.

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-3cm differences due to manual measurement.

Package Included:
1x Solar Tracking Module
