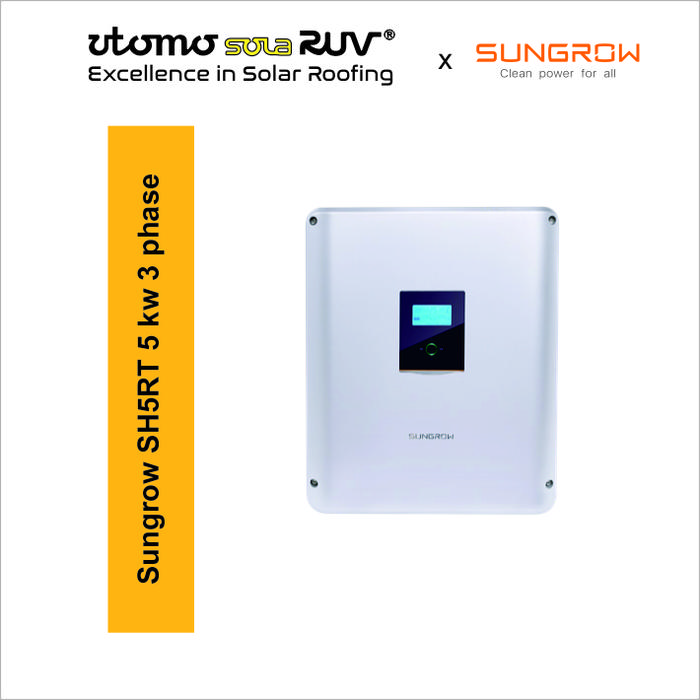

SUNGROW Inverter Hybrid SH 5/10 RT Series [Utomo SolaRUV] - SH5RT

Detail produk dari Hybrid Inverter SUNGROW SH5.0RT
*(Residential Hybrid Three Phase Inverter 2 MPPT)

Garansi Produk 5 tahun , bisa diextend

INPUT (DC)
Max PV Input Voltage : 1000 V
Startup Voltage SH 5/10 RT : 180V / 250V
Nominal Input Voltage : 600 V
No. of MPPTs : 2
No. of PV Strings per MPPT SH 5/10 RT : 1/1 / 1/2
Max PV Input Current SH 5/10 RT : 25 A (12.5A/12.5A) / 37.5 A (16A/32A)

OUTPUT (AC)
Nominal AC Power SH 5/10 RT : 5000W / 10000W
AC Output Power SH 5/10 RT : 5000 VA / 10000VA
Max AC Output Current SH 5/10 RT : 7.6A / 15.2A
Nominal AC Voltage 3 / N / PE, 220 / 380 V ; 230 / 400 ; 240 / 415 V
Nominal Grid Frequency : 50 Hz (45 - 55 Hz) / 60 Hz (55 - 65 Hz)

EFFICIENCY
Max. Efficiency / European Efficiency SH 5/10 RT : 98% / 97.2% - 98.4% / 97.9%

PROTECTION
LVRT
Anti-Islanding Protection
AC Short Circuit Protection
Leakage Current Protection
DC Switch (Solar)
DC Fuse (Battery)
Overvoltage Category (III Main, II PV & Battery)
SPD

BATTERY DATA (SH5RT)
Battery Type : Li-ion Battery
Battery Voltage : 150 V - 600 V
Max. Charge / Discharge Current : 30 A / 30 A
Max. Charge / Discharge Power : 7500 A / 6000 A

BATTERY DATA (SH10RT)
Battery Type : Li-ion Battery
Battery Voltage : 150 V - 600 V
Max. Charge / Discharge Current : 30 A / 30 A
Max. Charge / Discharge Power : 10600 A / 10600 A

GENERAL DATA
Dimensions (W x H x D) : 460 x 540 x 170 mm
Weight 27 Kg
