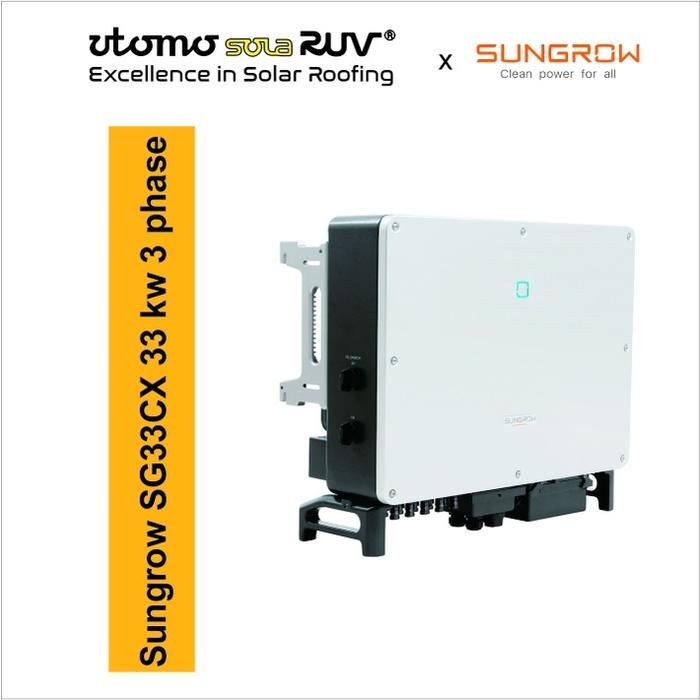

SUNGROW Inverter On Grid SG 33/40/50/110 CX Series [Utomo SolaRUV] - SG33CX

Detail produk dari Multi – MPPT String Inverter for 1000 Vdc System SUNGROW SG-CX Series

INPUT (DC)
Max PV Input Voltage : 1100 V
Min PV Input Volatge/Startup Voltage : 200/250 V
Nominal Input Voltage : 585 V
No. of MPPTs SG 33/40/50/110 CX : 3/4/5/9
Max PV Input Current SG 33/40/50/110 CX : 78A / 104A / 130A / 26 A * 9

OUTPUT (AC)
AC Output Power SG 33/40/50/110 CX : 33kVA / 40kVA / 50kVA / 110kVA
Max AC Output Current SG 33/40/50/110 CX : 55.2A / 66.9A / 83.6A / 158.8A
Nominal AC Voltage 3 / N / PE, 230 /400 V
Nominal Grid Frequency : 50 Hz/ 45 – 55 Hz, 60 Hz / 55 – 65 Hz

EFFICIENCY
Max. Efficiency / European Efficiency SG 33/40/50/110 CX : 98.6%/98.4% / 98.6%/98.4% / 98.6%/98.4% / 98.7%

PROTECTION
PV Reverse Connection Protection
AC Short Circuit Protection
Leakage Current Protection
DC Switch
Overvoltage Protection (AC Type II)

GENERAL DATA
SG33CX
Dimensions (W x H x D) : 702 x 593 x 310 mm
Weight 50 Kg

SG40CX
Dimensions (W x H x D) : 782 x 643 x 310 mm
Weight 58 Kg

SG50CX
Dimensions (W x H x D) : 782 x 645 x 310 mm
Weight 62 Kg

SG110CX
Dimensions (W x H x D) : 1051 x 660 x 362.5 mm
Weight 89 Kg
