Atur jumlah dan catatan
Stok Total: Sisa 6
Subtotal
Rp12.500

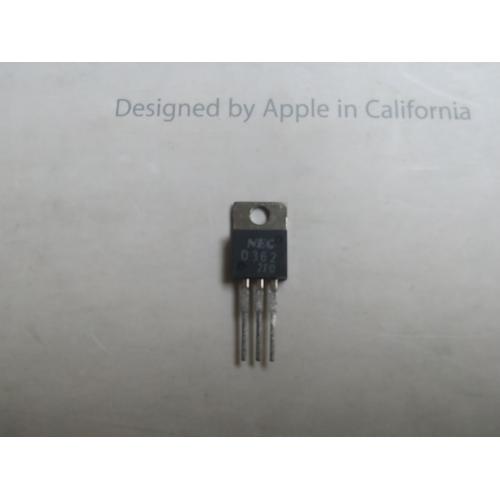

D362 / 2SD362 (NEC)
Rp12.500
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Transistor
Type Designator: 2SD362
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 150 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 8 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN: 30
Noise Figure, dB: -
Package: TO66
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 150 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 8 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN: 30
Noise Figure, dB: -
Package: TO66
Ada masalah dengan produk ini?
ULASAN PEMBELI
Belum ada ulasan untuk produk ini
Beli produk ini dan jadilah yang pertama memberikan ulasan
