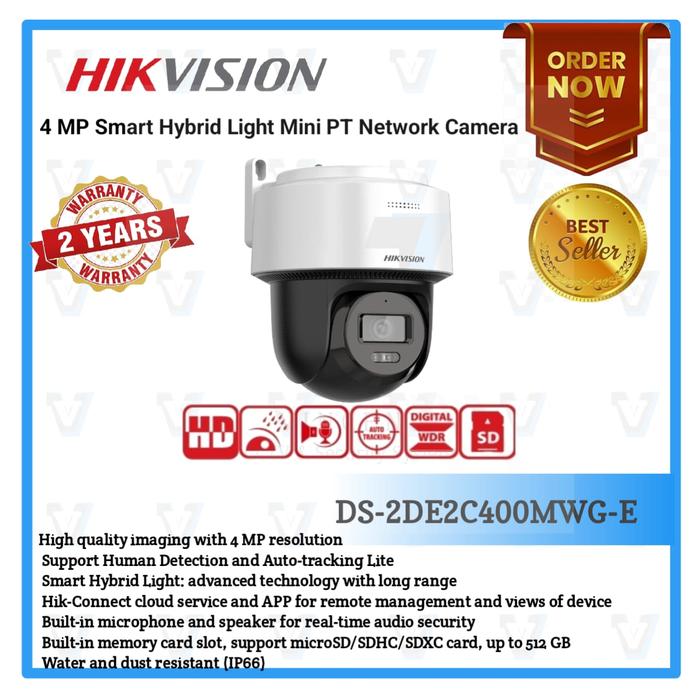

High quality imaging with 4 MP resolution
Support Human Detection and Auto-tracking Lite
Smart Hybrid Light: advanced technology with long range
Hik-Connect cloud service and APP for remote management and views of devices
Built-in microphone and speaker for real-time audio security
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
Water and dust resistant (IP66)
Spesifikasi ;
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
Focal Length 2.8 mm, 4 mm
FOV
2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°
4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°
Aperture F1.6
Supplement Light Type IR, White Light
Supplement Light Range White light distance: up to 30 m, IR distance: up to 30 m
Movement Range (Pan) 0° to 345°
Movement Range (Tilt) 0° to 80°
Pan Speed Up to 25°/s
Tilt Speed Up to 20°/s
Protocols
IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP,
DHCP, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Image Settings
Saturation, brightness, contrast, and sharpness adjustable by client software or web
browser
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, HLC, 3D DNR
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone 1 built-in microphone
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Speaker 1 built-in speaker
Basic Event
Motion detection (support alarm triggering by specified target type (human)), video
tampering alarm, exception
Linkage
Upload to FTP/memory card, notify surveillance center, send email, trigger capture,
audible warning, auto-tracking lite
Power
12 VDC ± 25%, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug, reverse polarity
protection,
Material Plastic
Operating Condition -10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
General Function Mirror, password protection, watermark
