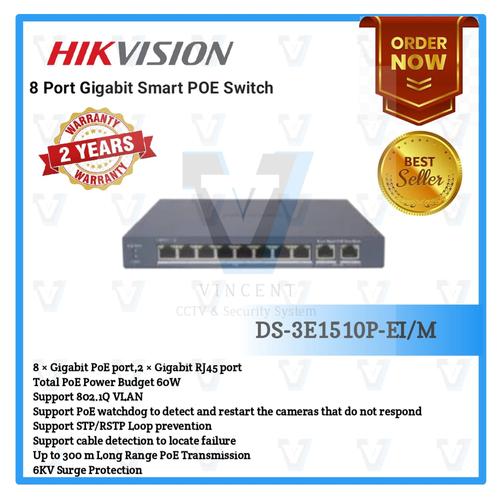

DS-3E1510P-EI/M Hikvision 8 Port Gigabit Smart POE Switch

Smart managed switches are developed by Hikvision, featuring easy management and maintenance. You can easily deploy,
monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network
topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of
network operation and maintenance.
 8 × Gigabit PoE port,2 × Gigabit RJ45 port
 Total PoE Power Budget 60 W
 Support 802.1Q VLAN
 Support PoE watchdog to detect and restart the cameras that do not respond
 Support STP/RSTP loop prevention
 Support cable detection to locate failure
 Up to 300 m Long Range PoE Transmission
 6 kV Surge Protection

Spesifikasi

Ports 8 × Gigabit PoE port,2 × Gigabit RJ45 port
MAC Address Table 4 K
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
Internal Cache 1.5 Mbits
PoE Standard IEEE 802.3af,IEEE 802.3at
PoE Power Pin End-span: 1/2(-), 3/6(+)
PoE Port PoE: Ports 1 to 8
Max. Port Power 30 W
PoE Power Budget 60 W
Long Range
Ports 1 to 8: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Port Isolation
Ports 1 to 8: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can
communicate with ports outside the isolation group.
PoE Watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond.
Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical
port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 3 aggregation groups.
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops,
which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLAN
Support one-click activation and remote management via Hik-Partner Pro.
Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management
IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as
network cable length can be detected.
Supports 802.1ab LLDP for peer device discovery.
Support SNMP v1/v2c for third-party management platform access.
Support port mirroring for fault locating.
Shell Metal material
Dimensions (W × H × D) 217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
