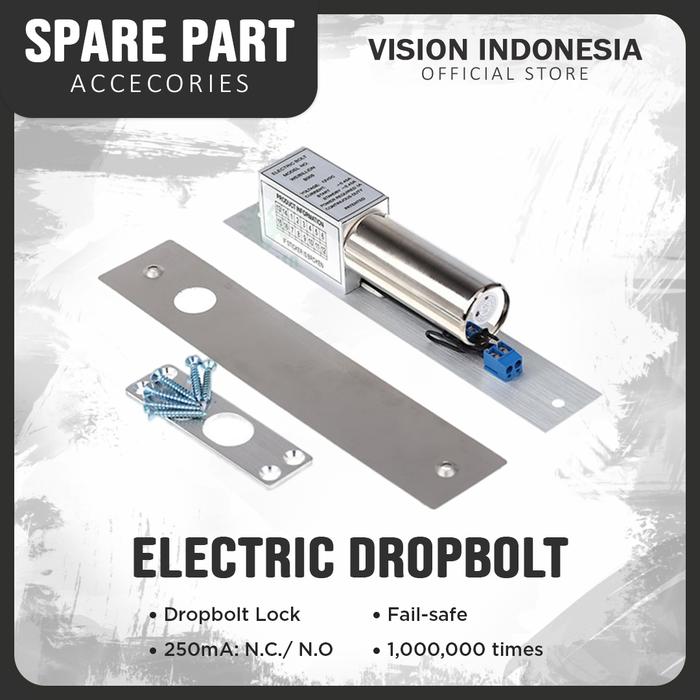

ELECTRIC DROP BOLT / DROPBOLT LOCK with BRACKET BESAR

ELECTRIC DROP BOLT / DROPBOLT LOCK with BRACKET BESAR Drop Bolt with Sensor adalah kunci elektrik yang menggunakan bolt system. Dropbolt memungkinkan pintu dapat digerakkan 2 arah sehingga banyak digunakan pada pintu entrance utama. Dropbolt ini telah dilengkapi dengan internal sensor yang dapat mendeteksi status pintu sehingga cocok untuk diintegrasikan dengan sistem pengamanan gedung / rumah Specification : Dual Voltage : DC12V Current Draw : Start 900Ma Standby 100mA Time : 0/3/6/9sec.(optional) Signal Output : Door status sensor Fail Safe : Unlocked when unenergized Safety function : Built-in voltage spike suppressor Performance Testing : five hundred thousand times aging test Patent Designed : Low temperature Opening Mode : 180 degree swinging door Suitable For : Wooden Door, Glass Door, Metal Door, Fire Proof Door Built-in door open or door close state detection output point (250mA: N.C./ N.O.). Special wearable design. Mechanic life of more than 1,000,000 times. Fail-safe type and MOV surge protection. Micro computer door position detection and current control to prevent error action and lower the lock #39;s temperature. Stainless steel bolt is able to sustain more than 1200 kg of shear force. Suitable for all types of 180 door. Door lock delay time: 0/ 2.5/ 5/ 9 seconds available to set. Built-in photo couplers door open push button input contact. Door will lock again automatically when door is not open within 5 seconds. Operation temperature: 0~90 ; Humidity: 85%Rh max. Dimensions: Body: 200mm(L) x 32mm(W) x 42mm(D) Strike plate : 90mm(L) x 26mm(W) x 2.5mm(D) Bolt : 16mm(Throw) x 15.5mm(Diameter) Weight:1500g
