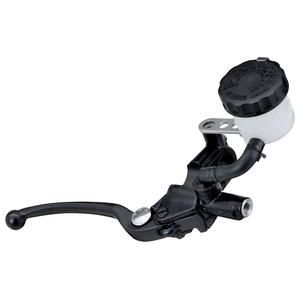

Master Rem Horizontal 14mm All Black NISSIN

Piston Diameter :14mm Compatible Handle Diameter :φ22.2 Lever adjustment (6-step adjustment) Reservoir Tank Hose Length :70mm [Attachment] Brake switch (2-pole flat terminal type) Aluminum Tank Stay X1 Mirror holder (M10XP1.25 regular screw) X1 included The tank bracket and brake switch are also included for a bolt-on design. A wide range of products that can be selected according to the diameter and color of the master cylinder piston of the stock vehicle. ●For Φ22.2 handlebar. ●Standard lever type and short lever type (about 35mm shorter than standard lever) are available. ●The standard lever type can be 6-way adjustable. ●Brake switch (flat terminal 2 pole type), aluminum tank bracket x 1pc, mirror holder (M10 x P1.25 right handed screw) x 1pc included. Caution *The bracket and the bolt are changed to silver in the present specification *Banjo bolt (M10 x P1.25) sold separately. *The direction and angle of the brake hose are different from stock. *The gasket must be replaced with a new one.You will need three for a double banjo and two for a single banjo. *Depending on the combination of caliper used, there may be a lever adjuster position where the lever will hit the grip before the required brake fluid pressure is generated, making it unusable. *Adjust the lever adjuster so that the brake is fully effective and the lever does not touch the grip. *If you cannot fully adjust the lever, please use the 4-way adjustment lever (Buff Clear 23319) or (Black 27354) (sold separately). *Do not use silicone-based DOT5 (BF5) brake fluid. *Never use levers other than those specified, as using RC30 type levers will cause the cylinder to remain pressed, resulting in vapor lock, etc. Part number: 61759 SKU: 1448240
