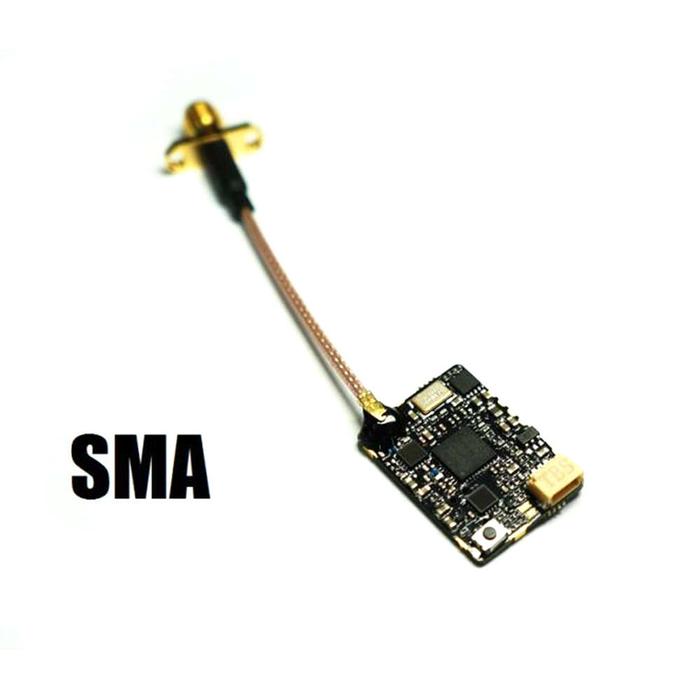

TBS Unify Pro 5G8 V3 (SMA) 5.8GHz FPV Video Transmitter VTx 25-800mW

Rp600.000

Kondisi: Baru
Min. Pemesanan: 1 Buah
Etalase: Transmitter & Receiver

NOTE : TBS Unify Pro 5G8 V3 hanya beroperasi pada tegangan 5V.

Produk terkait :
TBS Triumph Pro Antenna SMA : https://tokopedia.com/werno-werno/tbs-triumph-pro-sma-5-8ghz-antenna-rhcp-fpv-vtx-vrx-micro-5g8-antena

NEW IN V3:
Improved Voltage spikes acceptance from 6.5Vmax. on V2 to 13Vmax. on V3

MAIN FEATURES
- Smallest, lightest video transmitter on the market
- Up to 800mW of output power
- Ultra-clean transmission (up to 16 pilots at once!)
- PitMode - power up your quad during a race
- Easy OSD, FC and RC channel changes, with fallback button menu
- Robust RF amplifier allows powering up without antenna for hours!
- Clean powerup and video switching
- CE certified

SPECIFICATIONS
- Operating Voltage: 4.5 - 5.5V
- Supply current: 600mA
- Operating Temperature: watch for normal airflow
- Audio carrier Frequency: 6.5 MHz
- Video Input Impedance: 75 Ohm
- Weight: 5g (with SMA, without antenna)
- Antenna Connector: SMA Female Socket with screw mounting holes
- Video Format: NTSC/PAL
- Output Power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW*)

Pembelian mendapat :
1x TBS UNIFY 5G8 Video transmitter
1x 5V Video Transmitter pigtail cable
