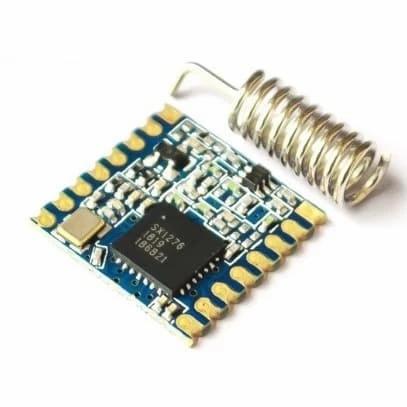

Modul SX1276 Wireless Transceiver LORA 915MHz Long-Range

The SX1276/77/78/79 transceivers feature the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.

Using Semtech’s patented LoRa modulation technique SX1276/77/78/79 can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. LoRa also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.

Features
LoRa Modem
168dB maximum link budget
+20dBm - 100 mW constant RF output vs. V supply
+14dBm high efficiency PA
Programmable bit rate up to 300kbps
High sensitivity: down to -148dBm
Bullet-proof front end: IIP3 = -11dBm
Excellent blocking immunity
Low RX current of 9.9mA, 200nA register retention
Fully integrated synthesizer with a resolution of 61Hz
FSK, GFSK, MSK, GMSK, LoRa and OOK modulation
Built-in bit synchronizer for clock recovery
Preamble detection
127dB Dynamic Range RSSI
Automatic RF Sense and CAD with ultra-fast AFC
Packet engine up to 256 bytes with CRC
Built-in temperature sensor and low battery indicator
Applications
Automated Meter Reading
Home and Building Automation
Wireless Alarm and Security Systems
Industrial Monitoring and Control
Long range Irrigation Systems
