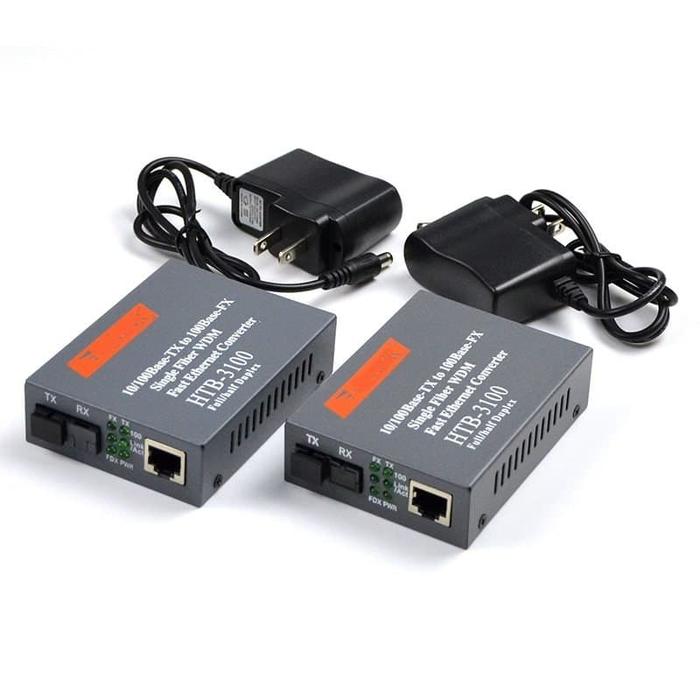

Media Converter HTB-3100 A-B 25Km Single Mode Transceiver FO (1Pair)

Media Converter HTB-3100 A-B 25Km Single Mode Transceiver FO (1Pair) Lose Pack Topologi: Gedung1= Switch RJ45 MediaConverterA/B FO max 20km MediaConverterB/A RJ45 Switch = Gedung2 Overview: Bidirectional 10/100M adaptive Ethernet fiber optic transceivers , using the latest U.S. KENDIN chip, high -quality single-fiber bidirectional optical transceiver module ( brand new manufacturers ) , stable performance and excellent quality. For Telecommunications , broadcasting, broadband fiber optic network data traffic and the need to improve performance, high-reliability network environment. Model: HTB-3100A/B-25KM Fiber optic type: Single mode Connector type: SC Transmit Wave length: 1310/1550nm Transmit power: -13~-6dBm Receiver sensitivity: -30dBm Transmission distance: 20km Allowable loss: 17dBm Feature: 1. Brand-New, High Quality. 2. An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic) ; 3. Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled ; 4. Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards ; 5. Has 10M/100M adaptive capacity ; 6. Ethernet interface can adaptively direct line / crossover cable connection ; 7. Support full / half duplex mode ; 8. Support IEEE802.3X duplex flow control and half-duplex backpressure flow control ; 9. Supports broadcast storm prevention function ; 10. 1916 Byte support large data frame ( optional ) ; 11. Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ; 12. UTP up to 100 meters ; longest 100 km single-mode fiber Packing Contents: 1x HTB-3100A 1x HTB-3100B 2x Power supply
