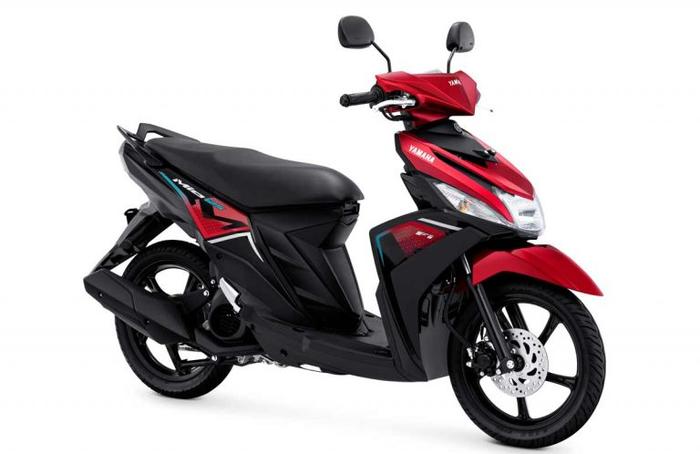

YAMAHA MIO M3 CW - BANGKA

Sistem Pengapian TCI Battery YTZ4V/GTZ4V Tipe Busi NGK/CR6HSA Tipe Mesin Air cooled 4-stroke, SOHC Kapasitas Oli Mesin Total = 0,84 L ; Berkala = 0,80 L Susunan Silinder Single cylinder Diameter x Langkah 52,4 x 57,9 mm Perbandingan Kompresi 9,5 : 1 Volume Silinder 125 cc Daya Maksimum 7,0 kW / 8000 rpm Torsi Maksimum 9.6 Nm / 5500 rpm Sistem Starter Electric amp; Kick Starter Sistem Pelumasan Wet Sump Sistem Bahan Bakar Fuel Injection Tipe Kopling Dry, Centrifugal Automatic Tipe Transmisi V-Belt Automatic Sistem Pengapian TCI Battery YTZ4V/GTZ4V Tipe Busi NGK/CR6HSA Tipe Mesin Air cooled 4-stroke, SOHC Kapasitas Oli Mesin Total = 0,84 L ; Berkala = 0,80 L Susunan Silinder Single cylinder Diameter x Langkah 52,4 x 57,9 mm Perbandingan Kompresi 9,5 : 1 Volume Silinder 125 cc Daya Maksimum 7,0 kW / 8000 rpm Torsi Maksimum 9.6 Nm / 5500 rpm Sistem Starter Electric amp; Kick Starter Sistem Pelumasan Wet Sump Sistem Bahan Bakar Fuel Injection Tipe Kopling Dry, Centrifugal Automatic Tipe Transmisi V-Belt Automatic Tipe Rangka Underbone Suspensi Depan Teleskopik Suspensi Belakang Unit Swing Ban Depan 70/90-14M/C (34P) Ban Belakang 80/90-14M/C (40P) Rem Depan Hydraulic Single Disc Brake Rem Belakang Drum Brake P X L X T 1870mm X 685mm X 1035mm Jarak Sumbu Roda 1260 mm Jarak Terendah Ke Tanah 135 mm Tinggi Tempat Duduk 750 mm Berat Isi 92 kg Kapasitas Tangki Bensin 4,2 L
