Inclinometer DXL360S DXL360 High-Precision Dual-Axis Inclinometer Digital Angle Meter Level Meter Gauge Angle Protractor With Magnetic Base - DXL360S

Selamat Datang di Toko Yuliana_fStoreJKT

Features:
1.DXL360S high-precision ± (0.05 °+1%), high-resolution 0.01 °; DXL360 high-precision ± (0.1 °+1%), high-resolution 0.02 °;
2.It can measure the tilt angle of single axis and dual axis, and the large screen LCD can clearly display the angle.
3.USB charger, lithium battery charging;
4.V-shaped groove design, easy to work in pipelines or corners;
5.The instrument has strong magnetism inside and can adsorb on iron objects for a long time;
6.The range of sound alarm angles can be set for product verification;
7.Absolute mode measurement (equivalent to the horizontal plane of the Earth), relative mode measurement, and recalculating the initial measurement angle (any plane can be set to a relative zero plane, and the measurement plane reading is the relative zero plane inclination angle);
8.Self calibration function, you can operate and calibrate according to the above instructions without worrying about direction calibration errors, and has added the function of preventing calibration direction errors;
9.Added the function of converting length and size units, which can directly convert the tilt error of a 1-meter long object into a millimeter reading;
10.External adapters can be used for data transmission, either SVRS232 computer adapter or SV-BT wireless adapter;
11.It can measure the angle between any object * Only DXL360S has this function * i.e. gyroscope function!

Specifications:
Product model: DXL360, DXL360S
DXL360S accuracy: 0 ° -20 °: ± (0.05 °), 20 ° -70 °: ± (0.1 °), 70 ° -90 °: ± (0.05 °), resolution: 0.01 °
DXL360 accuracy: 0 ° -20 °: ± (0.1 °), 20 ° -70 °: ± (0.2 °), 70 ° -90 °: ± (0.1 °), resolution: 0.02 °
Measurement range: single axis: 360 °; Dual axis: ± 40 °
Response time:<0.4 seconds
Buzzing sound: 60dB @ 30cm
Working temperature: 0 to 50 ℃
Storage temperature: -10 to 60 ℃
User interface: monochrome backlit LCD display
Power supply: Rechargeable built-in lithium-ion battery, 3.7V
Charger interface: 5V 500mA MiniB USB interface
Power consumption: standby: 10uA Operation: 20mA
Battery life: 4000 hours
Working battery life: 40 hours
Dimensions (millimeters): 70 (length) x 70 (width) x 28 (height)
Magnetic seat: at the bottom and back

Package Included:
Carton packaging

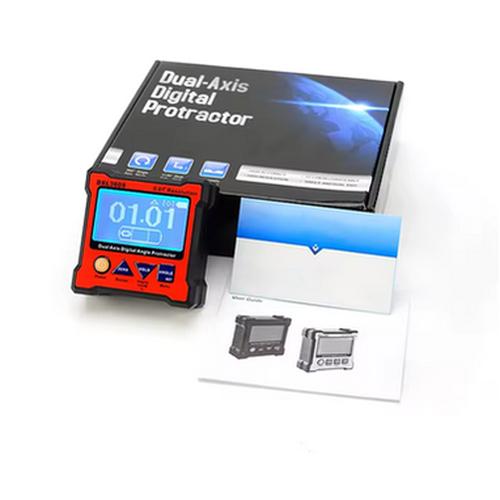

Level gauge * 1, instruction manual * 1, MINI B-type USB cable * 1, Storage bag * 1
