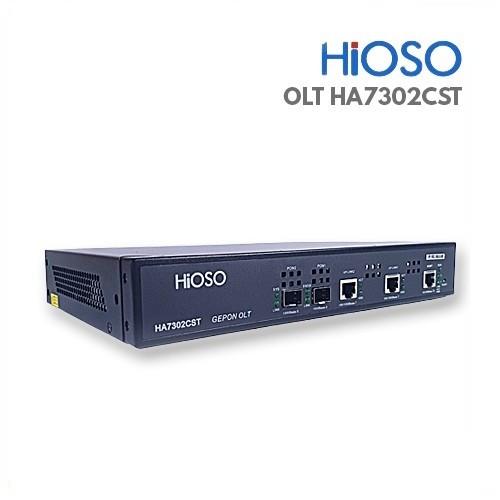

HIOSO HA7302CST OLT 2 PORT PON EPON OLT HIOSO HA7302 CST

HIOSO HA7302CST OLT EPON
HARGA BELUM TERMASUK SFP

HA7302CST is a standalone 2-PON OLT,working with HA7200 series ONU and ODN, to establish a passive optic network. It supports 2-PON, 64 ONUs access (maximum 128). It supports 10～20km transmission distance at the base of high bandwidth, full line speed L2/L3 transition capacity. It supports WEB/SNMP/CLI management.

Feature :
- Supply 2 SFP PON ports, 2 GE uplink ports, 1 10/100M RJ45 management port
- Support SNMP management and WEB management
- Each PON port support maximum 1:64 split ratio, total 128 ONUs access
- Distance can reach 20km under 1:32 split ratio, in 10km maximum 1:64
- Support to work with different brands ONUs to establish passive network
- 1U rack design, inside fan,better for heat dissipating and reliability operating
- Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access


Parameter Specifications
Operating
wavelength
1310（RX）/1490（TX）
Optical power +0 ~ +3dBm
Receiving sensitivity -27dBm
Max distance 20km
Max splitter ratio 1:64
Capacity 2 PON, standard: 64 ONUs maximum:128 ONUs
MAC 8K
Uplink port 2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports optional
PON port 2 SC fiber ports
Control port RJ45 console port, to debug the device
MTBF 100,000 hours
EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time
operation)
