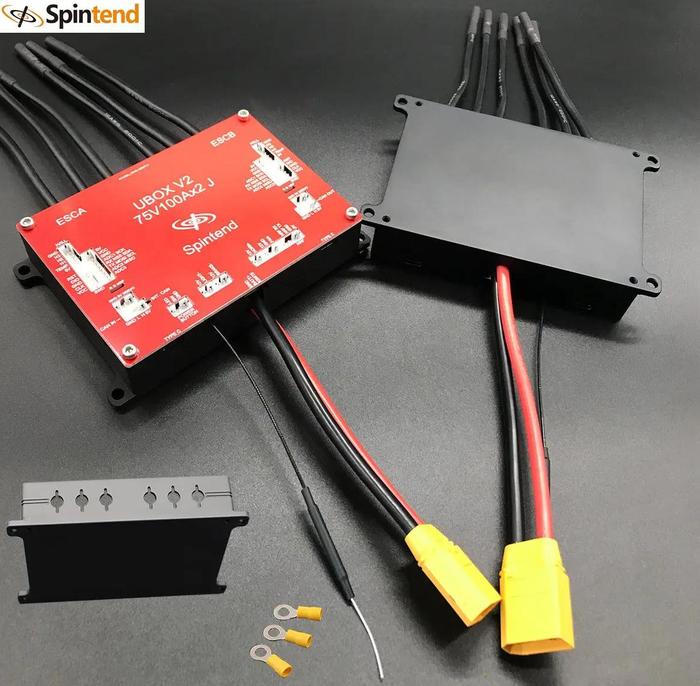

75V200A Dual Motor Controller Ubox V2 J with 2.4Ghz Receiver Integrate Base on 75V300A VESC for Electric Scooter Skateboard Bike

75V200A Dual Motor Controller Ubox V2 J with 2.4Ghz Receiver Integrate Base on 75V300A VESC for Electric Scooter Skateboard Bike 1005004743464114 ? Pre-Order +/- Sampai Alamat 10-15 Hari ? FREE ONGKIR+PAJAK ?? Garansi uang kembali jika Rusak, Beda Produk Model Name : Ubox V2 J Origin : Mainland China 75V200A Dual Motor Controller Ubox V2 J with 2.4Ghz Receiver Integrate Base on 75V300A VESC for Electric Scooter Skateboard Bike Firmware Download * The product is shipped with latest firmware(6.0) * Warning: Open source firmware has risky feature, Only hardware is in warranty protection. * Get 6.0 firmware and vesc tool herehttps://drive.google.com/drive/folders/19hknvr1Skb0jzSKpbtOBUzmIyPnut3Kq?usp=share_link 1. Technical Data: * Voltage : 12V-75V (peak voltage should be less than 80V, 16S safely) * Current : Max 100A/channel, the dual max 200A * 12V output: Max 3A(the fan , horn and lights share this current) * 5V output : Max output 500mA * Switch button: current Max 15mA * Size and weight: 29 x 83x27mm (including screw)/ 396g * Cables: Motor cable: 12AWG 12cm / Battery Cable: 10AWG 12cm 2. Why Choose this J version? * This product is designed base on Standard Dual Ubox V2 75V , both with mature and optimized design and production artwork. * Adapt 100V mosfet in 75v Product, keep enough safe margin. Tower-Joint Connection design makes two boards separatable and more reliable MOSFET PART NO: JMSH1001ATL (100V 1.3m N-Ch Power MOSFET) refer to its data sheet: https://drive.google.com/file/d/1NMvH76iks4N1SNl8wmcOBEDCrAd4h6nQ/view?usp=sharing Reminds: Although the MOSFET SPEC IS 100V ,still can #39;t use ubox v2-J at 100v, due to other parts spec are less than 100v . It #39;s far more safe to use this product under 75V * Strengthen Hall port circuit protection and 12v/5v/3.3v/ignit
